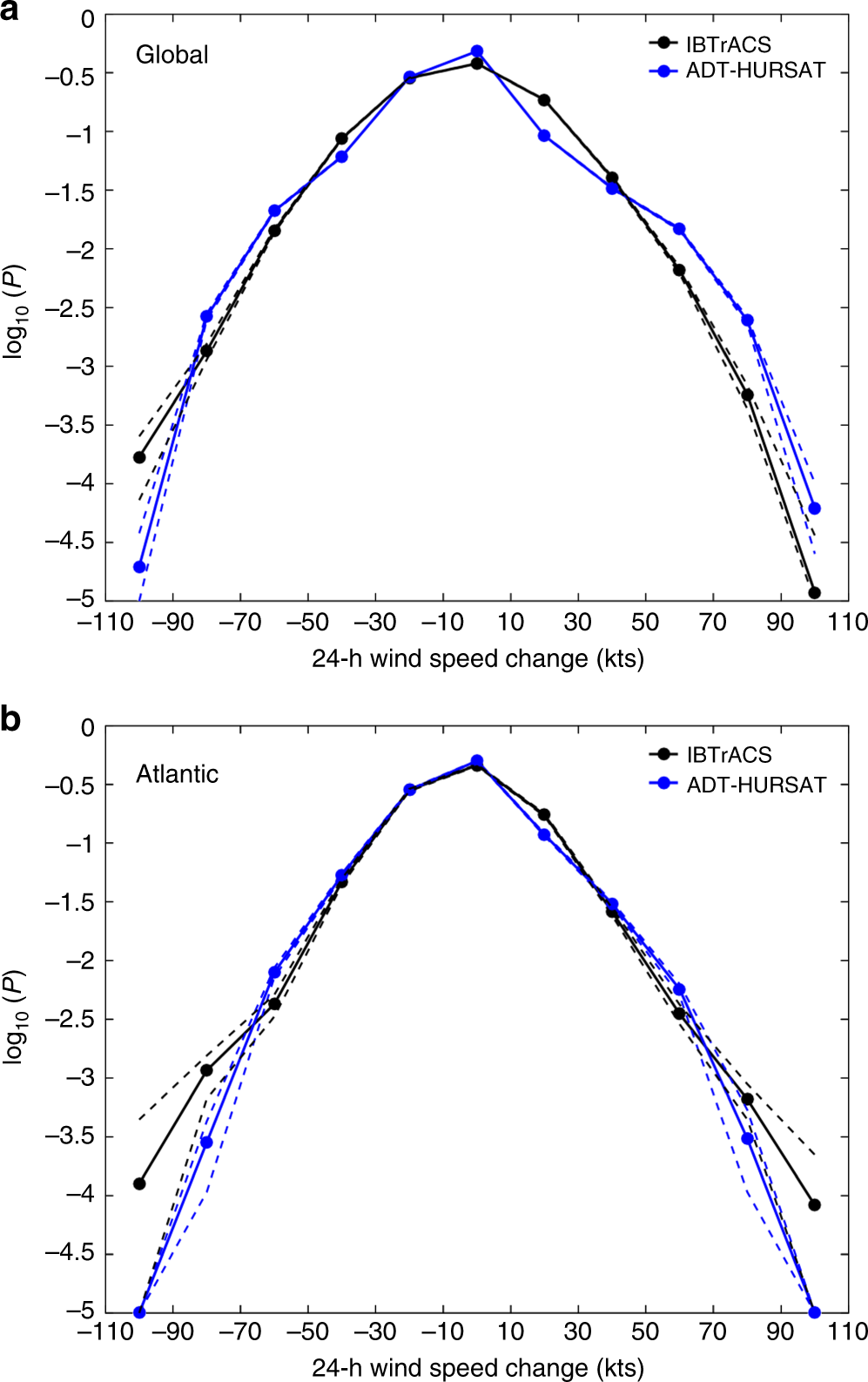

Fig. 1
From: Recent increases in tropical cyclone intensification rates
Observed 24-intensity change probability densities. a, b Common logarithm of the probability densities calculated from IBTrACS (black) and ADT-HURSAT (blue) 24-h intensity changes. a Global and b Atlantic basin results for the period 1982–2009 are plotted. Data are binned in 20 knot increments between −110 and 110 knots. The dashed lines indicate the 90% confidence interval (between 5th and 95th percentiles of the data) (Methods). All distributions are bounded below by 10−5
