Fig. 5
From: Versatile kit of robust nanoshapes self-assembling from RNA and DNA modules

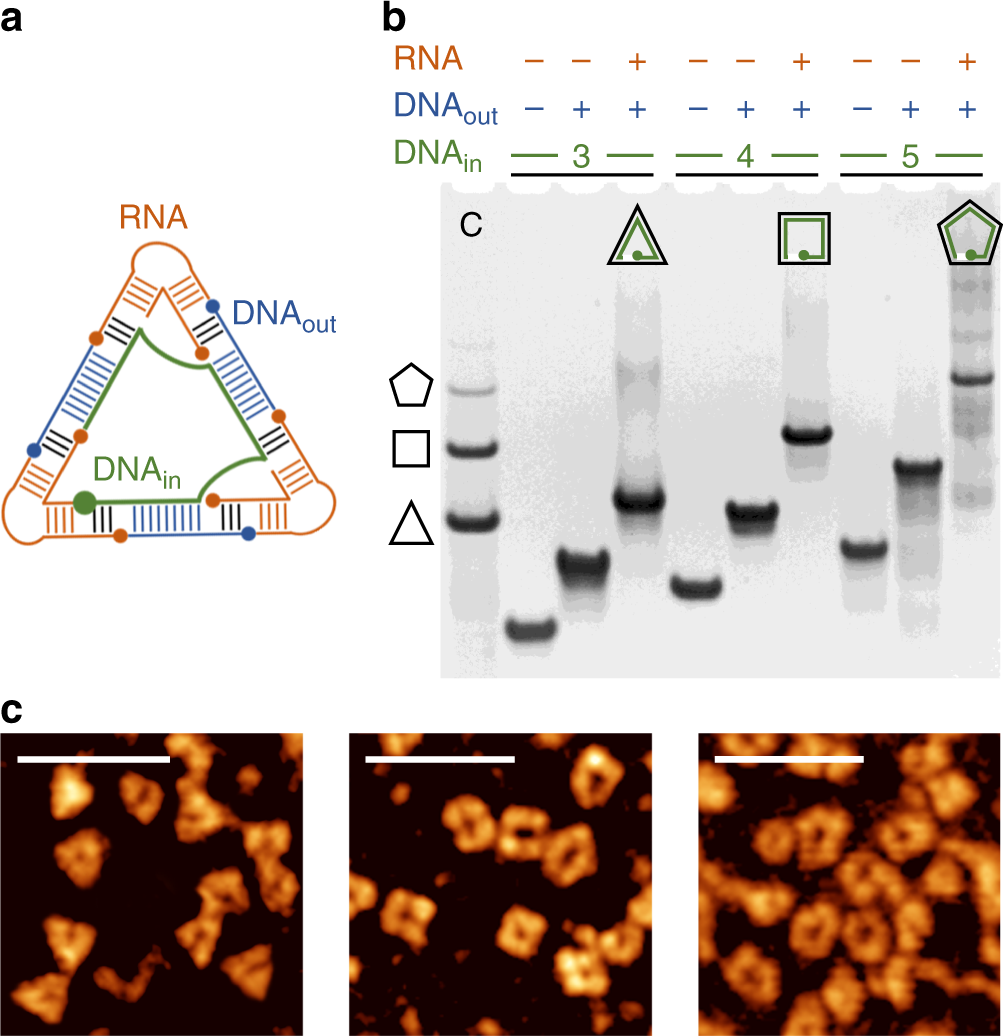

DNA modules for controlled assembly of RNA-DNA hybrid nanoshapes. a Inclusion of a long DNA guide strand (green) that contains a defined number of hybridization sites, spaced by a linker sequence, directs the formation of homogenous polygonal nanoshapes, as shown here for the triangle. b Native PAGE analysis reveals homogenous nanoshapes migrating slightly slower than the same species in the nanoshape mixture shown as control in lane C. c AFM topography images of homogenous nanoshapes. Scale bars represent 50 nm. Source data are provided as a Source Data file
