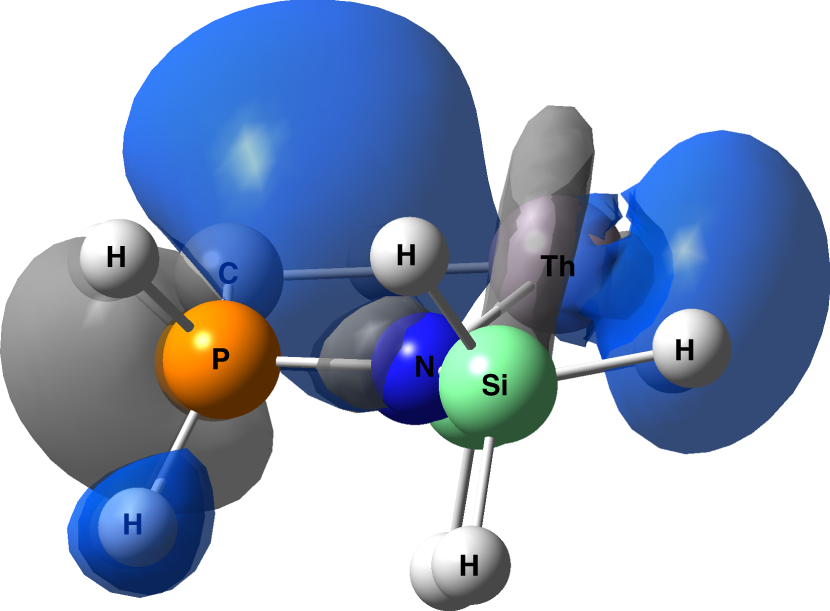

Fig. 6
From: Emergence of the structure-directing role of f-orbital overlap-driven covalency
NLMO of [C]=Th2+. This NLMO has significant amplitude in the trans direction, resulting in a cis directing effect. The orbital is 16.86% Th character, and that component is composed of 19.77% 7s, 63.88% 6d, and 16.05% 5f
