Fig. 1

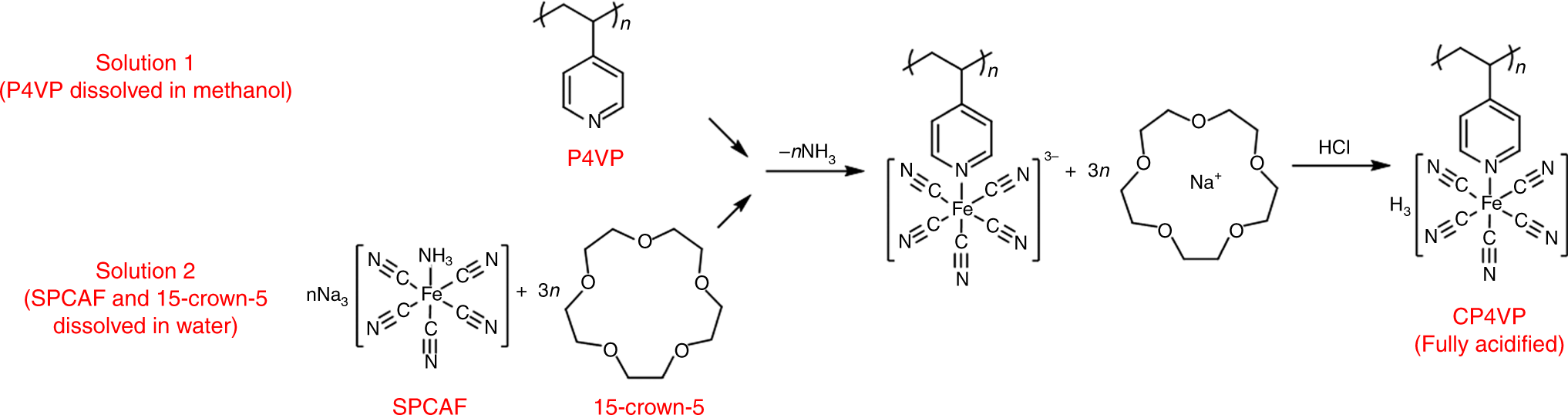

Synthesis of coordinated polymer. CP4VP is synthesized from P4VP and SPCAF. The pyridyl group in P4VP replaces the –NH3 ligand of Fe and becomes a substitutive ligand to obtain the coordinated polymer. CP4VP: ferrocyanide-coordinated poly(4-vinylpyridine); P4VP: poly(4-vinylpyridine); SPCAF: sodium pentacyanoammineferroate (II); 15-crown-5: 1,4,7,10,13-pentaoxacyclopentadecane
