Fig. 3
From: Carbonate formation in salt dome cap rocks by microbial anaerobic oxidation of methane

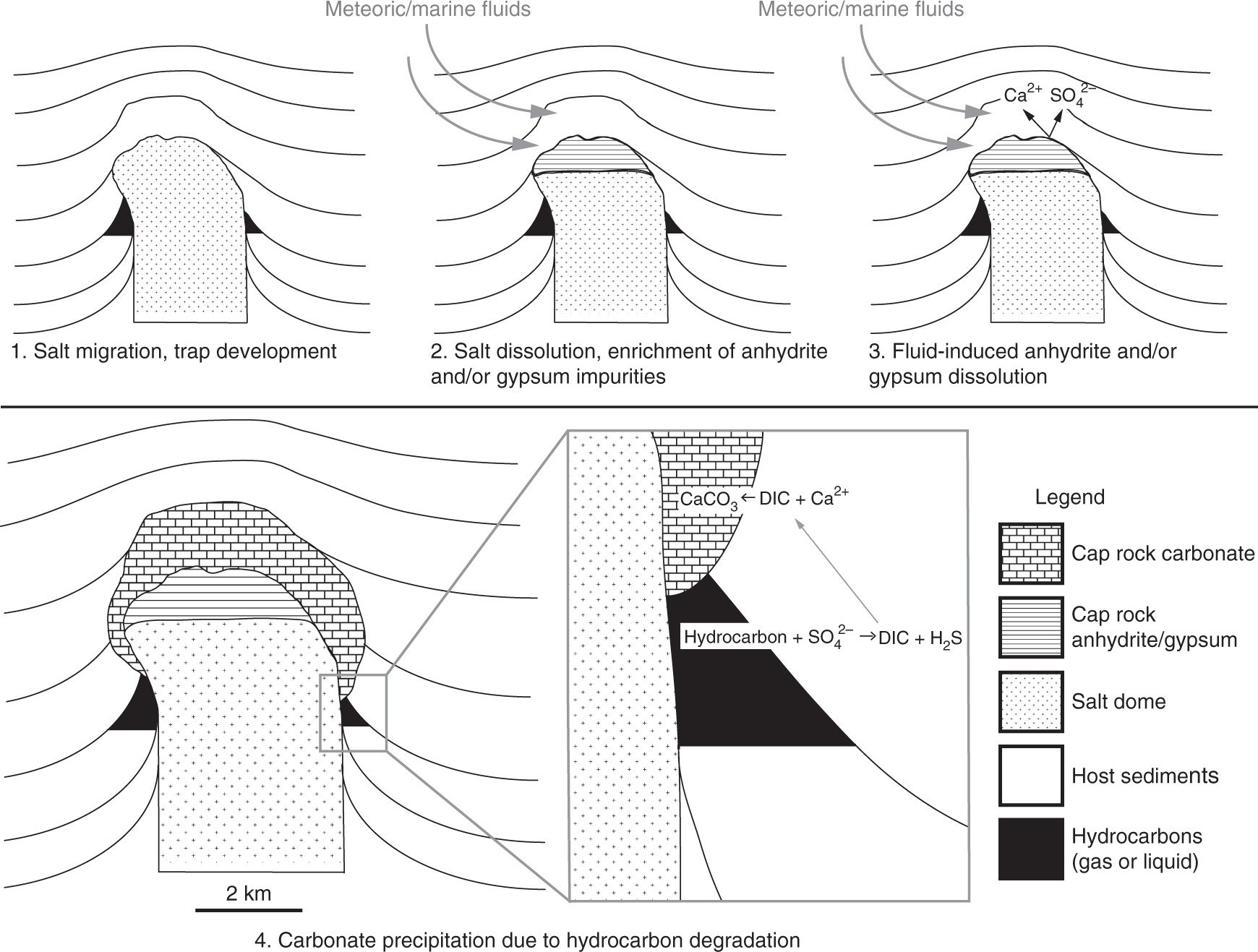

Proposed paragenetic evolution of Gulf of Mexico Basin cap rock. The specific nature of degraded hydrocarbon is largely uncharacterized, as is the relationship between degradation pathway and carbonate authigenesis (see step 4)
