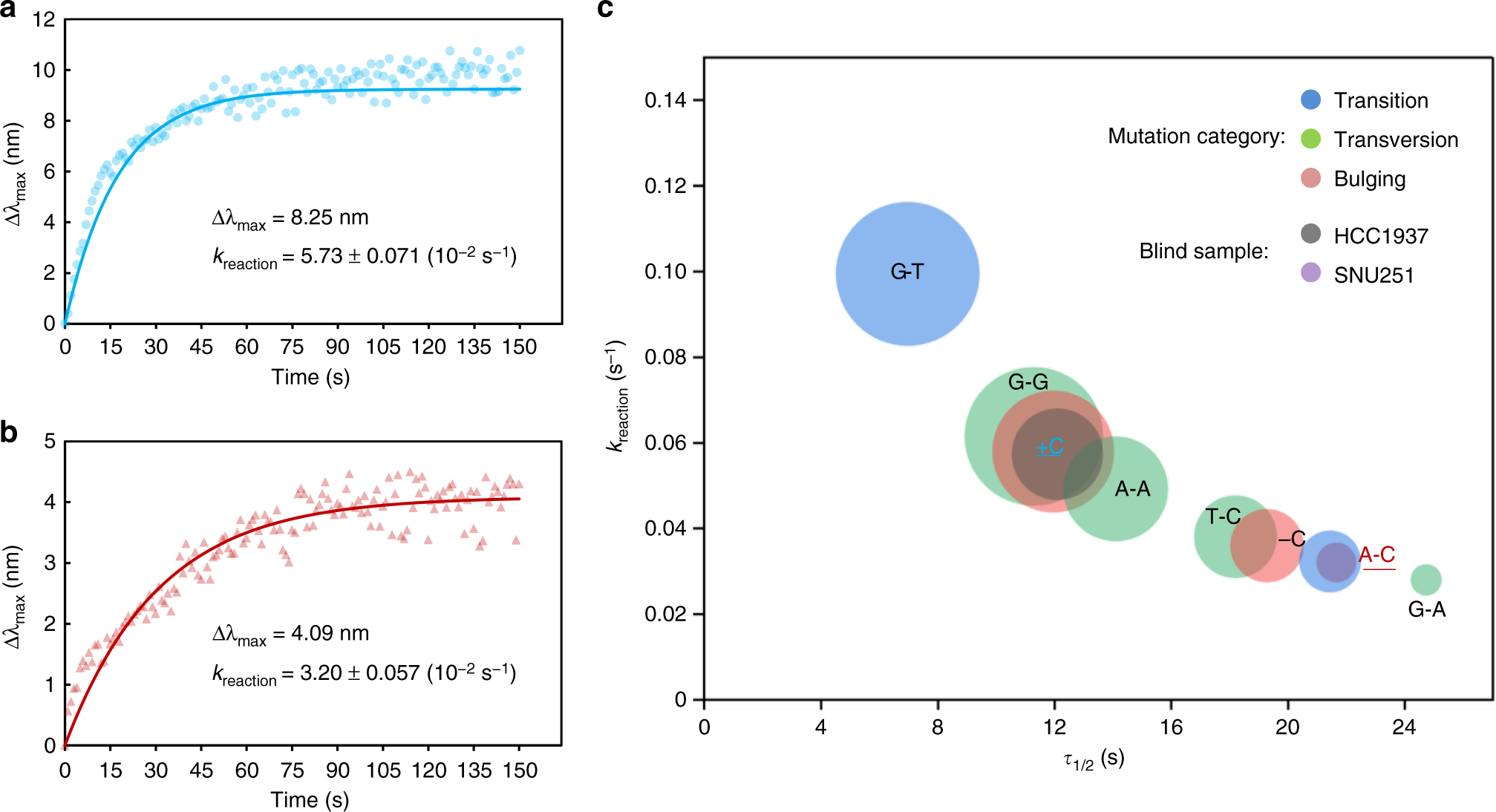

Fig. 7
From: Single gold-bridged nanoprobes for identification of single point DNA mutations
Analysis of the presence and type of potential mutations in BRCA1 from human cancer cells. a Detection of the sample from breast cancer cells HCC1937. b Detection of the sample from ovarian cancer cells SNU251. c The kreaction values in (a, b) were input into the atlas, predicting mutations of +C and A–C, respectively. Source data are provided as a Source Data file
