Fig. 3
From: High performance planar germanium-on-silicon single-photon avalanche diode detectors

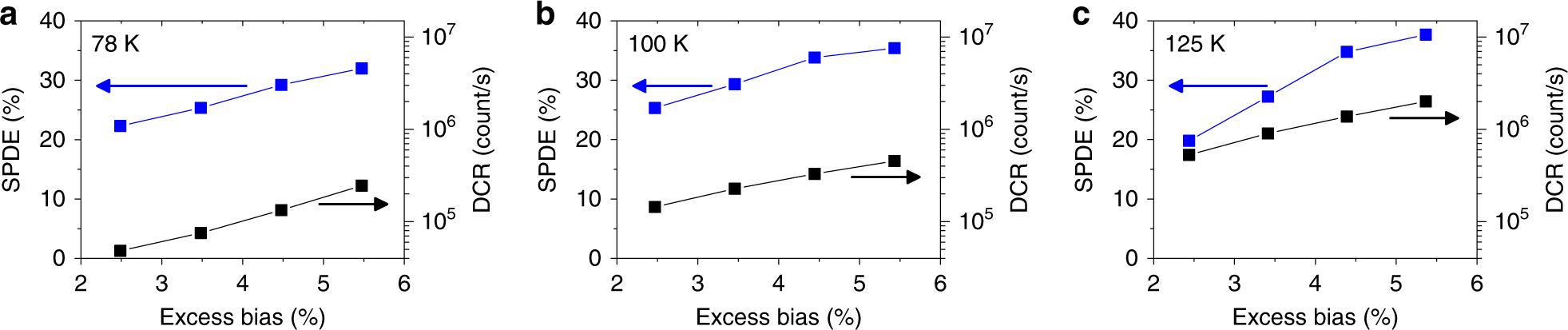

Ge-on-Si single-photon avalanche diode (SPAD) performance. Single-photon detection efficiency (SPDE) and dark count rate (DCR) as a function of excess bias for a 100 µm diameter SPAD at temperatures of a 78 K, b 100 K and c 125 K. The measurements were taken using the time-correlated single-photon counting (TCSPC) technique with a 50 ns electrical gate applied to the detector to bias it above avalanche breakdown. For the SPDE measurements the gate was synchronised with the arrival of the 1310 nm wavelength attenuated laser pulse. The detector was gated at a repetition rate of 1 kHz
