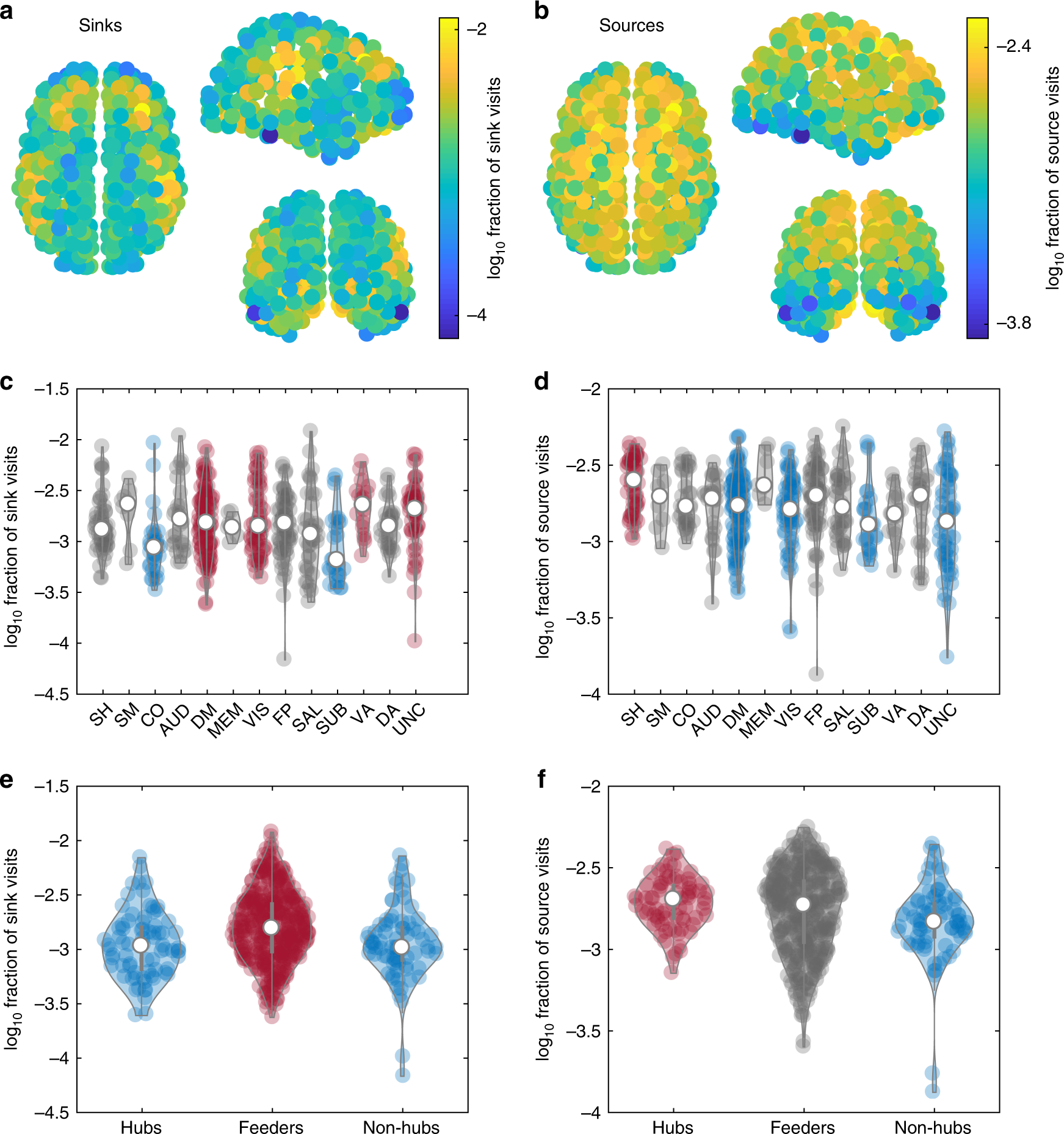

Fig. 7

Sink and source properties. a Spatial distribution of sinks. b Spatial distribution of sources. c Overlap of sinks with functional networks. Blue denotes networks with fewer visits than red and gray denotes no significant difference from any other group. Networks are labeled as follows: AUD auditory, CO cingulo-opercular, DA dorsal attention, DM default mode, FP fronto-parietal, MEM memory, SAL salience, SH somatomotor hand, SM somatomotor mouth, SUB subcortical, UNC unclassified, VA ventral attention, VIS visual. d Overlap of sources with functional networks. Colors as per c. e Overlap of sinks with hubs (top 75 nodes by strength), feeders, and non-hubs (bottom 75 nodes by strength). Colors as per c. f Overlap of sources with hubs, feeders, and non-hubs. Colors as per c. White circles in violin plots denote group medians; violins are kernel density estimates. Statistics for c, d are given in Supplementary Table 1 and for e, f in Supplementary Table 2. Source data are provided as a Source Data file.
