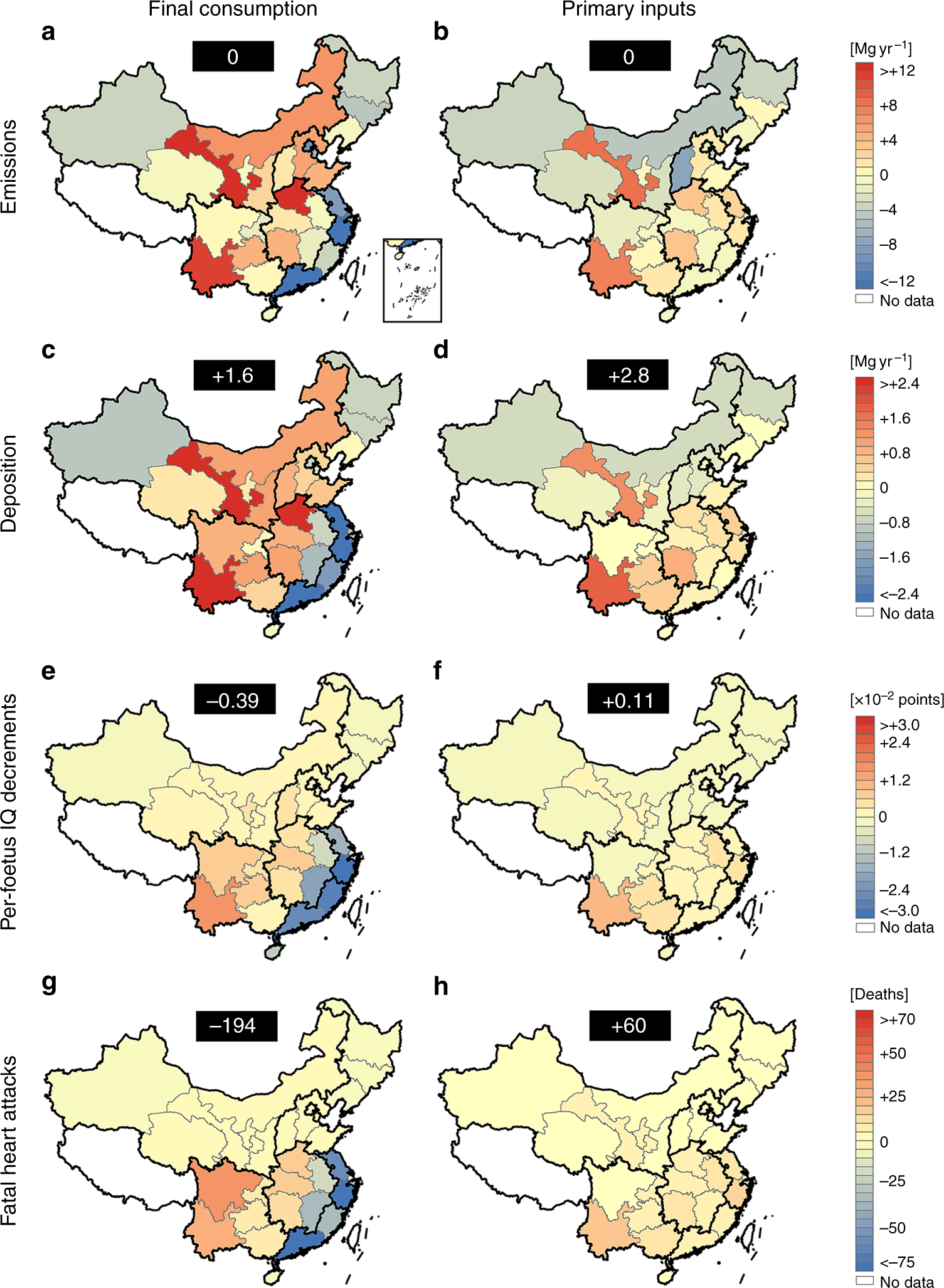

Fig. 4
From: Trans-provincial health impacts of atmospheric mercury emissions in China
Spatial relocation of atmospheric mercury (Hg) emissions and deposition as well as Hg-related intelligence quotient (IQ) decrements and fatal heart attacks over China due to interprovincial trade. The relocation is evaluated by the difference between interprovincial trade of products versus producing the same products locally under a hypothetical absence of interprovincial trade. a, c, e, g The results for the interprovincial trade of products induced by final consumption, and b, d, f, h the results for the interprovincial trade of products enabled by primary inputs. The number at the top of each panel shows the net national change with the sum of changes in all provinces
