Fig. 4 | Nature Communications

Fig. 4

From: Whole-genome resequencing of 472 Vitis accessions for grapevine diversity and demographic history analyses

Fig. 4The alt text for this image may have been generated using AI.

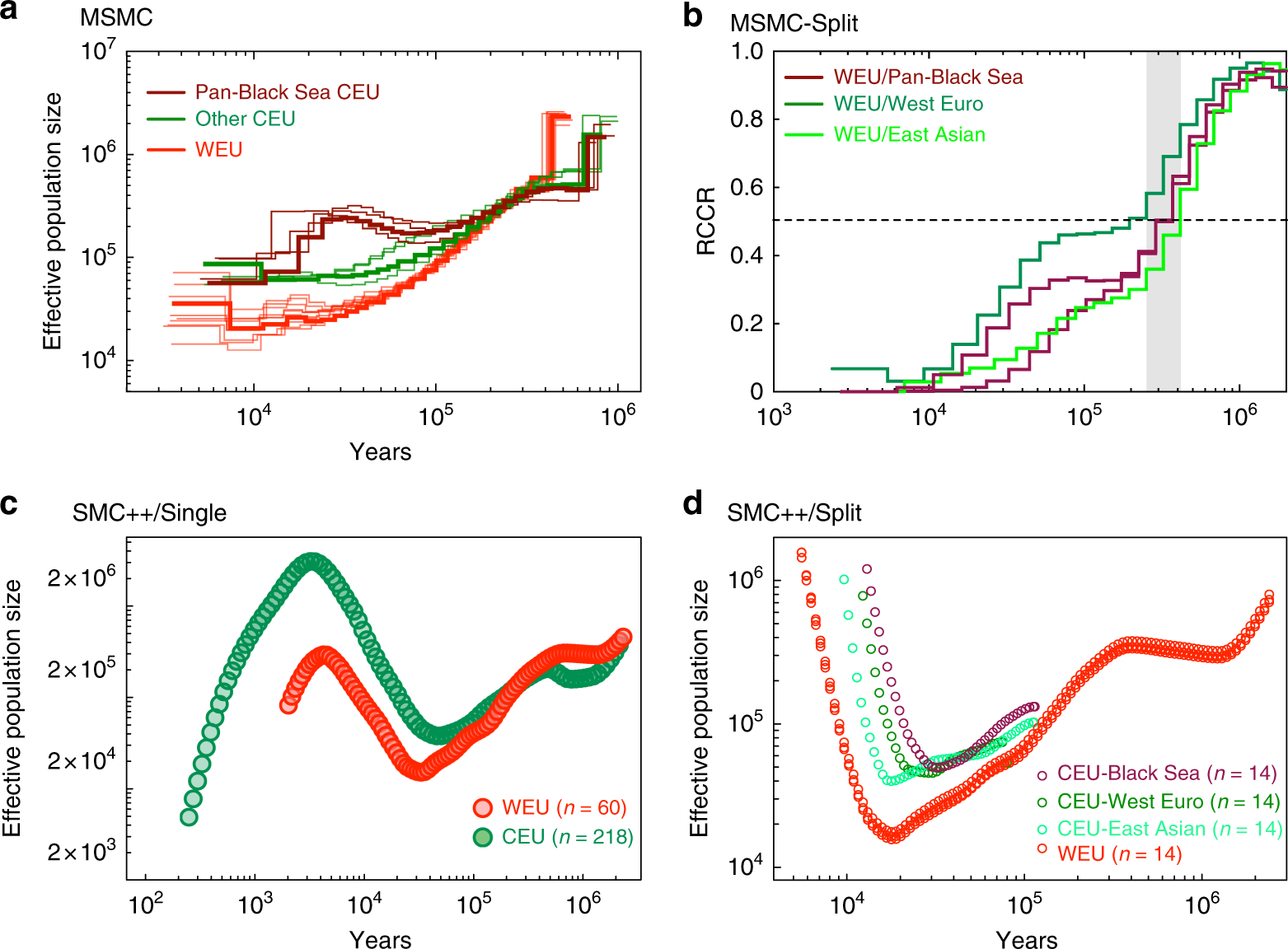

Demographic history of wild European grapevines and cultivated grapevines. a MSMC-derived demographic history of WEU and CEU grapevines from 104 to 106 years ago. Each line represents a run of four haplotypes from two individual accessions. An example was highlighted in each group. For CEU grapevines, cultivars from the pan-Black Sea region generated distinct demographic history compared with other cultivars. b MSMC split analysis of WEU and various subgroups of CEU grapevines based on relative cross-coalescence rate (RCCR). c Demographic history of WEU (n = 60) and CEU grapevines (n = 218) from 102 to 106 years ago from SMC++ single population analysis. d Demographic history of WEU (n = 14) and various subgroups of CEU (n = 14) grapevines from 104 to 106 years ago from SMC++ split analysis
