Fig. 4

From: Clonal architectures predict clinical outcome in clear cell renal cell carcinoma

Fig. 4The alt text for this image may have been generated using AI.

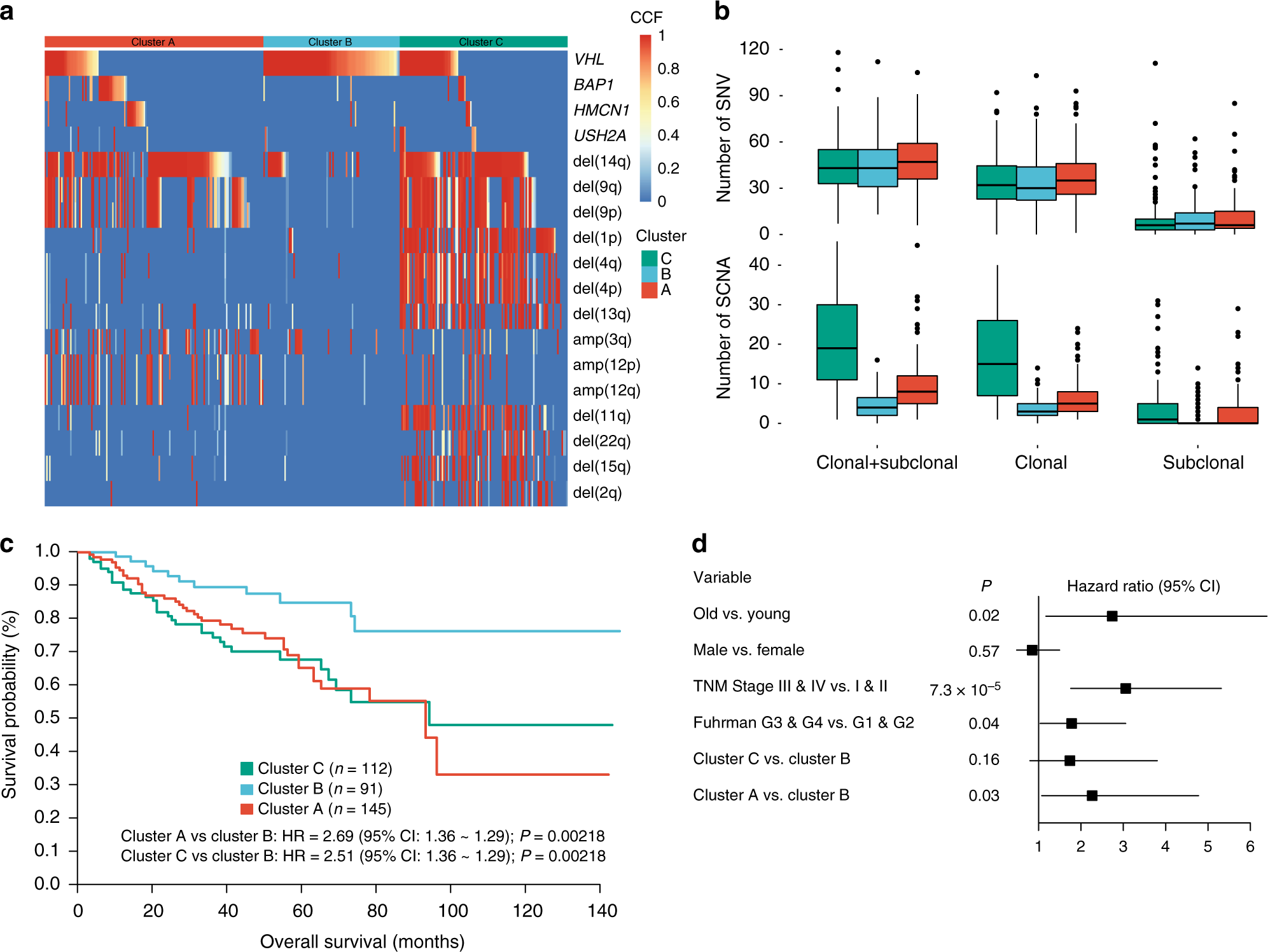

Prognostic significance of molecular subtyping in ccRCC. a Molecular subtyping of ccRCC based on the CCF values of 18 frequent somatic events showing associations with clinical outcomes in univariate analyses. b Comparison of the overall burdens of SNVs and arm-level SCNAs among different genomic subtypes of ccRCC. The P values are determined by Student’s t tests. c Kaplan–Meier survival curves displaying survival outcomes of different clusters. d The results of multivariate Cox regression analyses adjusting for age, sex, TNM staging, Fuhrman grade, and molecular subtypes. Hazards ratio (HR), 95% confidence interval (CI), and P-values are displayed
