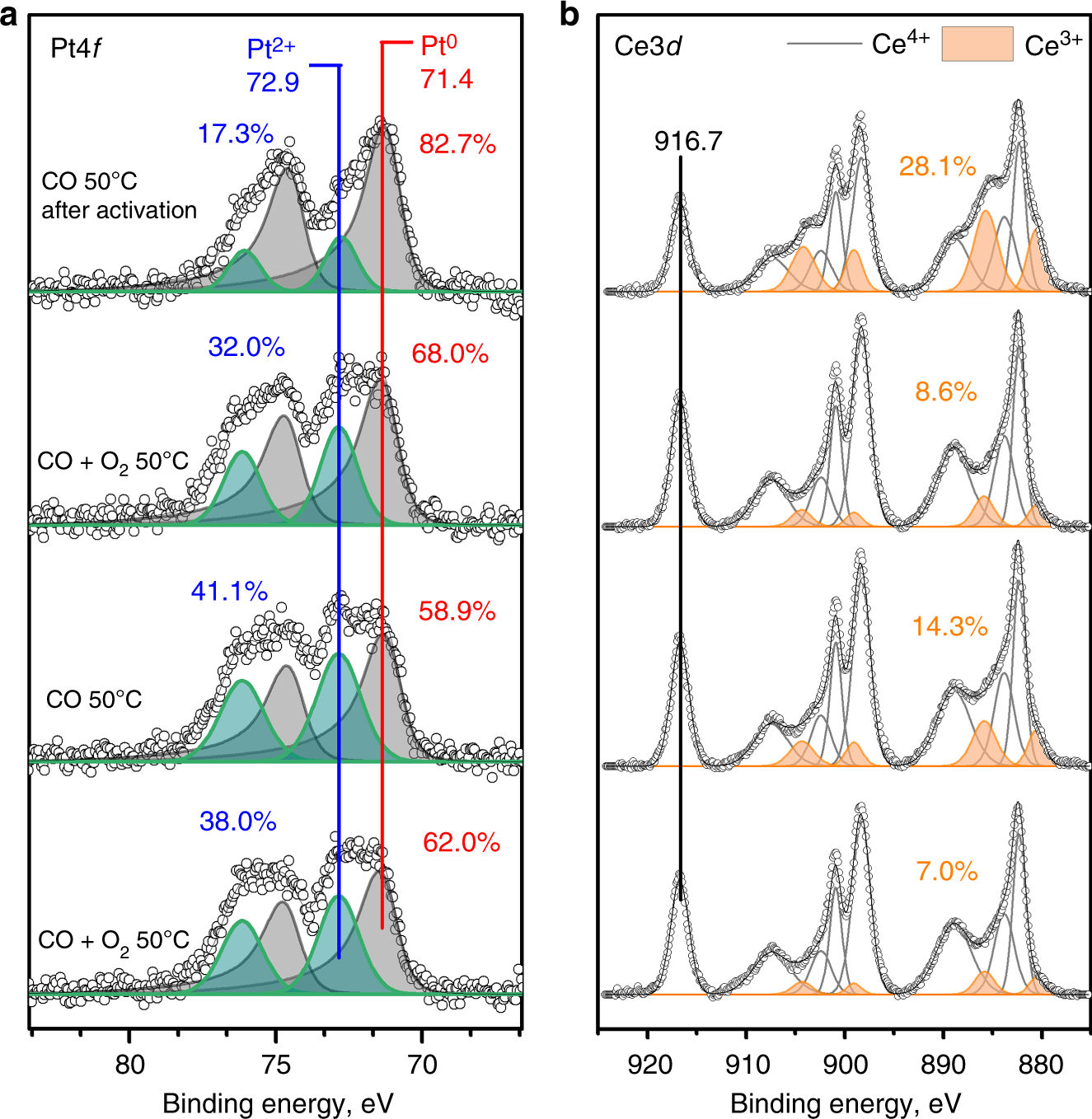

Fig. 5
NAP-XPS results for the 1wt.%Pt/CeO2 TAPN catalyst synthesized by AT after activation in CO at 275 °C: a Pt4f region, b Ce3d region. The catalyst was sequentially exposed to different gas environments, starting at the top. The Pt/Ce ratio remained at ~0.030 throughout the experiment
