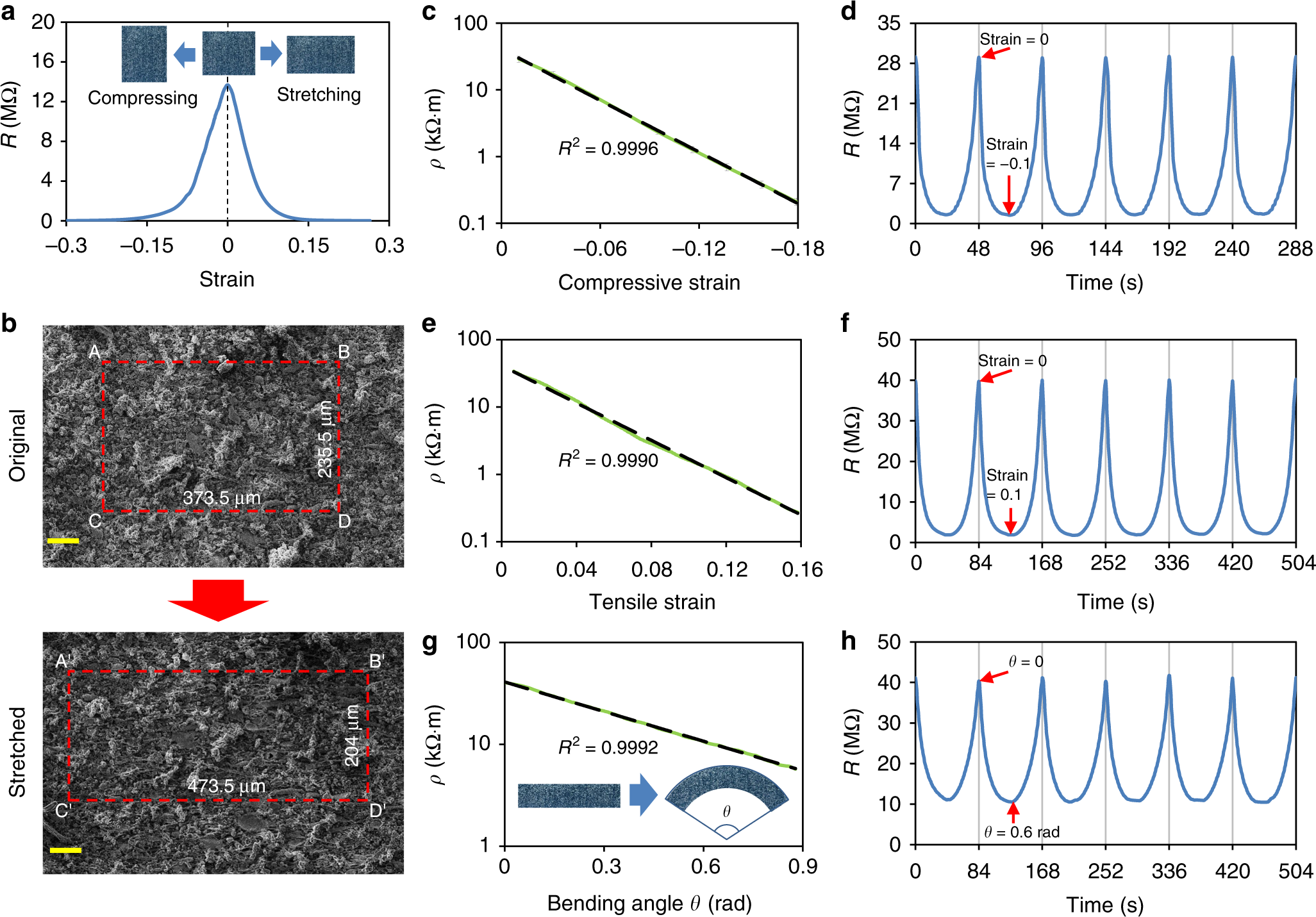

Resistivity of the liquid metal-filled magnetorheological elastomer (LMMRE) upon the application of mechanical loadings. a Resistance-strain curve of the LMMRE. b Scanning electron microscopy (SEM) images of the LMMRE under relaxed and tensile conditions (scale bars are 100 µm). Resistivity-strain curves and the resistance changes under cyclic loading under c, d compression, e, f stretching, and g, h bending
