Fig. 4

From: Liquid metal-filled magnetorheological elastomer with positive piezoconductivity

Fig. 4The alt text for this image may have been generated using AI.

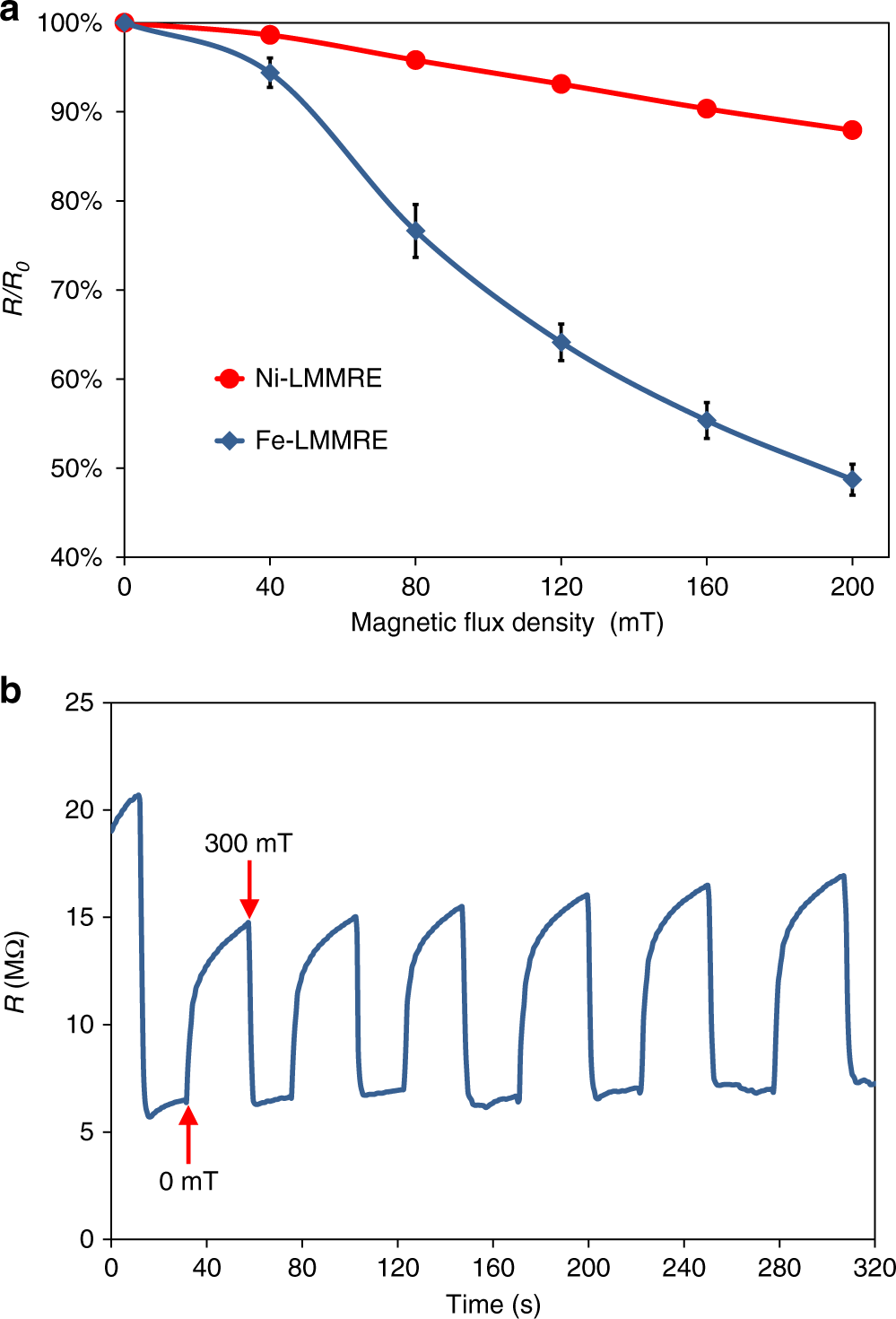

Response of the liquid metal-filled magnetorheological elastomer (LMMRE) to magnetic field. a The resistance changes of iron (Fe)- and nickel (Ni)-LMMRE (LMMRE using Fe and Ni microparticles) in the magnetic field. The value of the error bar is the standard deviation of the sample resistivity under five measurements. b The resistance change of Fe-LMMRE in periodic magnetic field
