From: In-situ electron microscopy mapping of an order-disorder transition in a superionic conductor

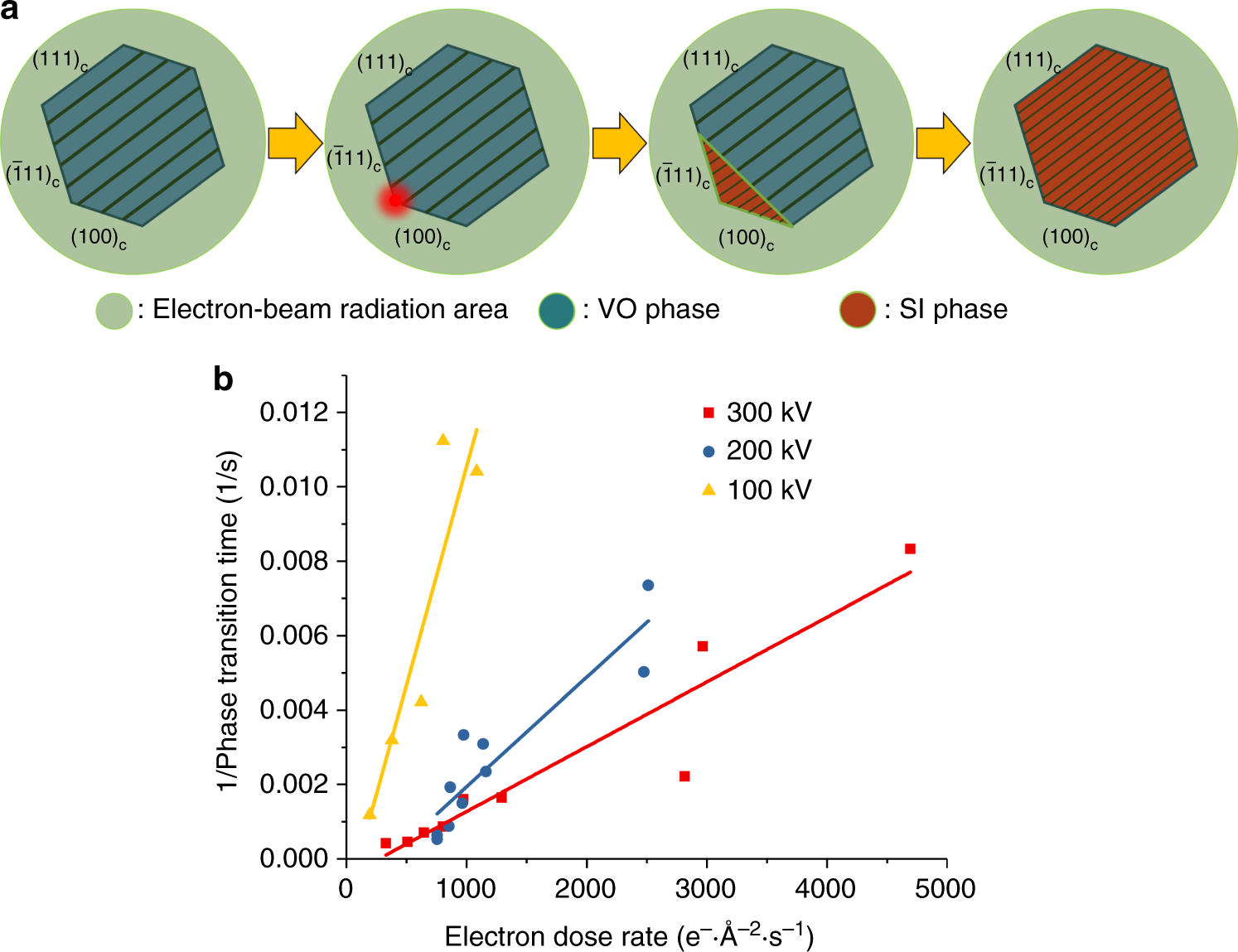

Spatiotemporal progression of the order–disorder transition. a Schematic of the electron-beam induced transition of the Cu2−xSe HNPs from the VO phase to the SI phase. b The speed of the phase transition as a function of the electron dose rate at three different accelerating voltages. The phase transition speed is defined by the inverse of the time it takes from the start of the acquisition for the entire Cu2−xSe HNP to transition into the SI phase. Each data-point is obtained from a separate single HNP subject to electron-beam irradiation of a fixed electron dose rate at a fixed accelerating voltage. Solid lines are meant to guide the eye
