Fig. 5
From: D-Serine made by serine racemase in Drosophila intestine plays a physiological role in sleep

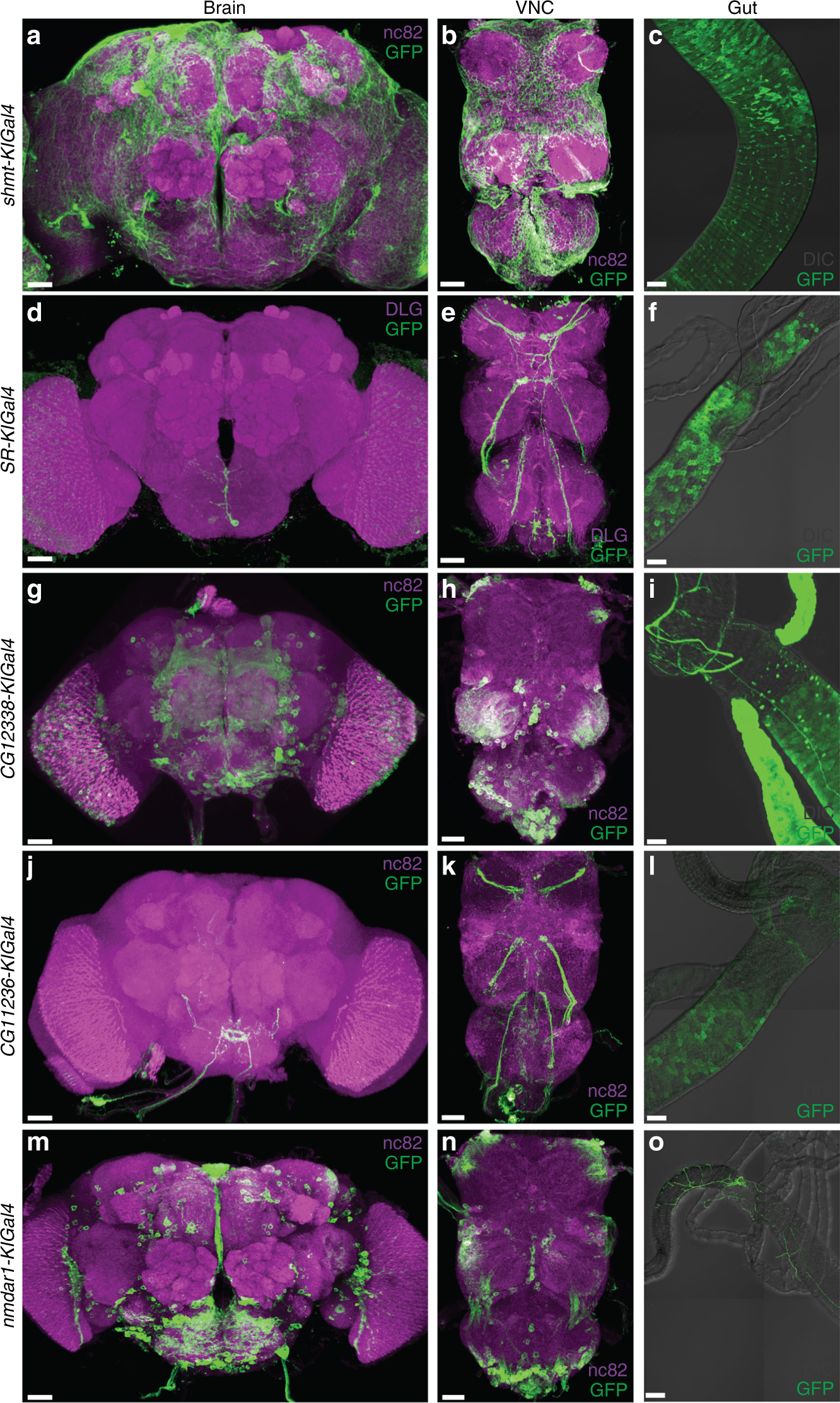

Expression patterns of shmt, sr, daao, and nmdar1. Expression patterns of shmt-KIGal4 (a–c), SR-KIGal4 (d–f), CG12338-KIGal4 (g–i), CG11236-KIGal4 (j–l), and nmdar1-KIGal4 (m–o) labeled by mCD8::GFP in the brain (a, d, g, j, m), the ventral nerve cord (VNC) (b, e, h, k, n), and the gut (c, f, i, l, o). The tissues were immunostained with anti-GFP and anti-DLG in (d, e), immunostained with anti-GFP in (c, f, i, l, o), immunostained with anti-GFP and nc82 in other panels. Scale bars are 30 μm
