From: Seismic evidence for a mantle suture and implications for the origin of the Canadian Cordillera

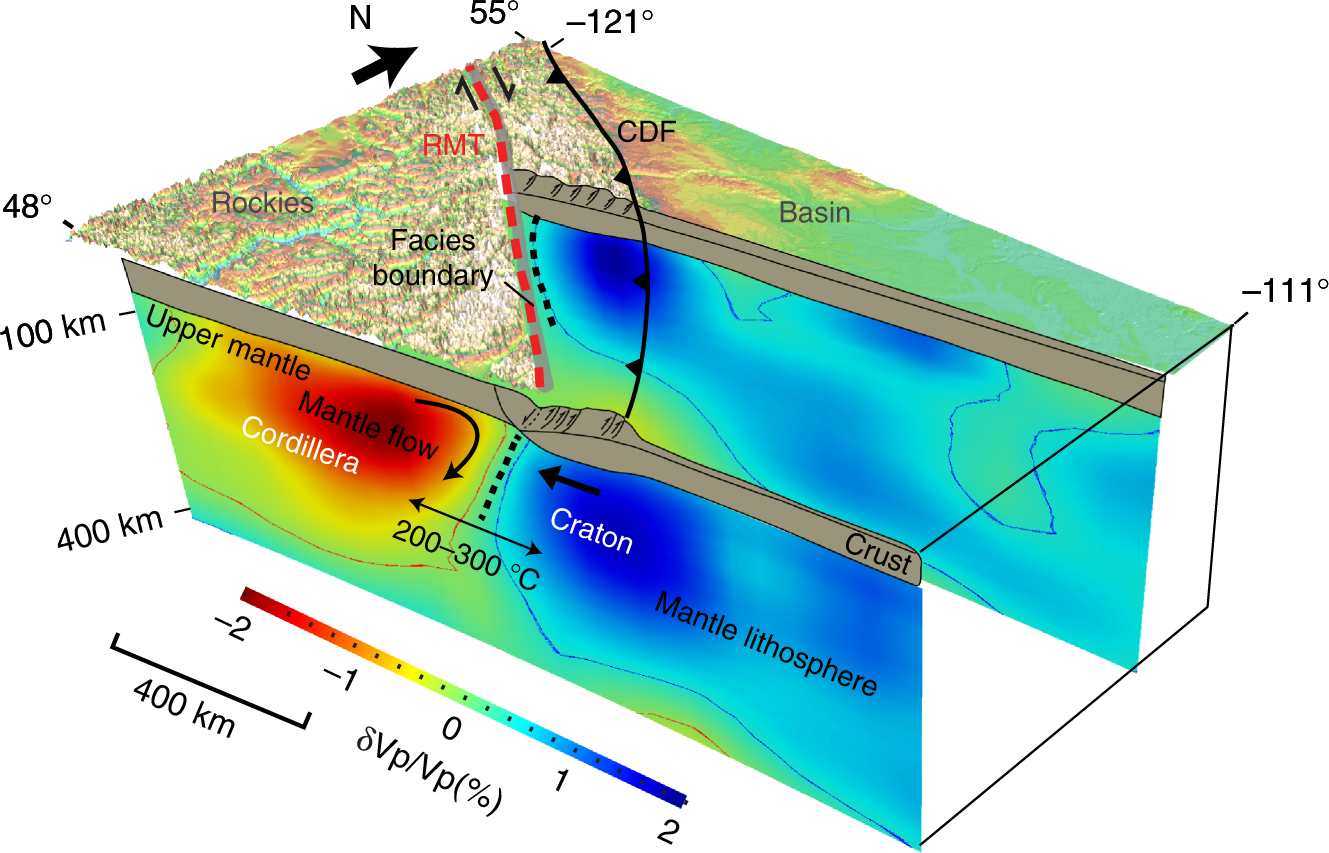

A 3-dimensional perspective of the Cordillera–craton boundary. The profile in the south is dominated by margin-perpendicular displacement whereas the northern profile is characterized by strike-slip motion. The Rocky Mountain Trench and Cordilleran Deformation Front are shown by the red dashed and black barbed lines, respectively. The surface facies boundary is shaded in gray and the mantle boundary is indicated by the black dashed line on the cross-section
