Fig. 3

From: Laser restructuring and photoluminescence of glass-clad GaSb/Si-core optical fibres

Fig. 3

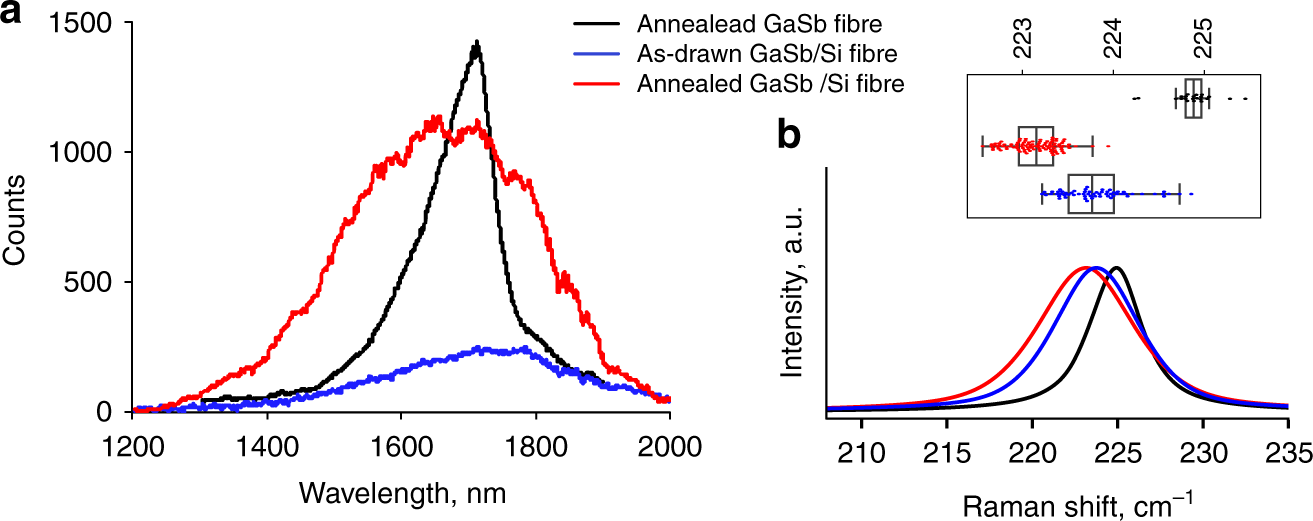

Photoluminescence and strain results. a Room temperature emission from an annealed GaSb fibre (black, reduced 2.5 times), with PL from as-drawn (blue) and spot-annealed (red) regions of a composite GaSb/Si fibre. b Raman spectra for GaSb the same fibres, showing tensile strain in the composite fibres and peak broadening. The inset shows statistical information on the peak positions; the box width is one standard deviation and the end bars are at three. Coloured dots show the data points
