Fig. 3
From: Deep-ocean mixing driven by small-scale internal tides

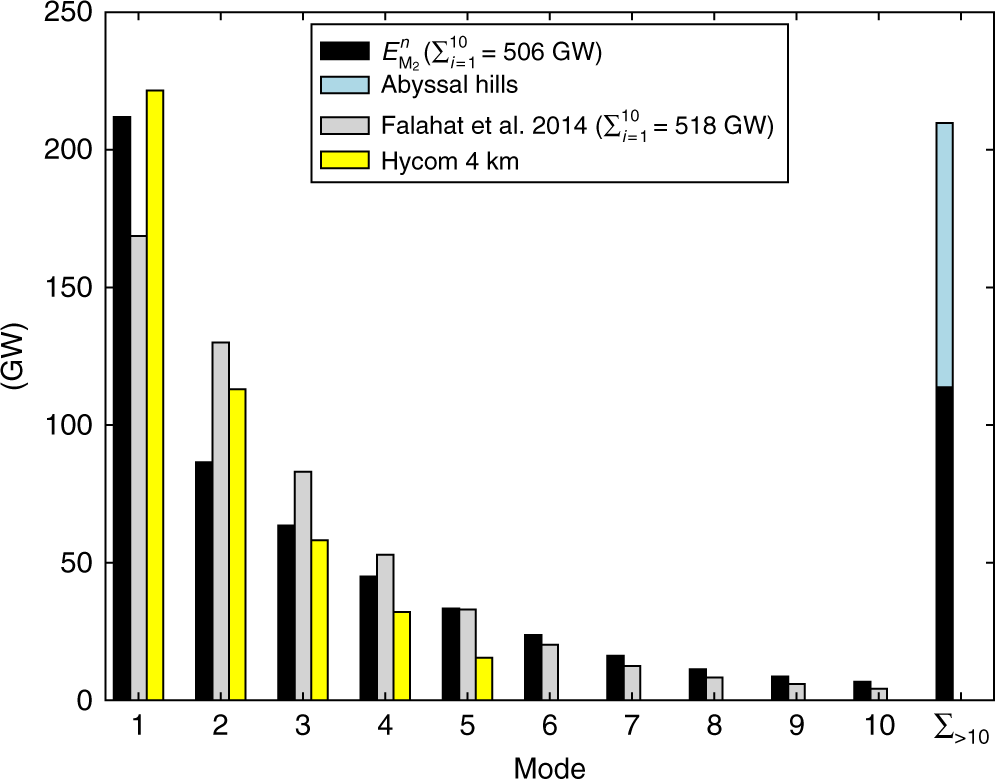

Histogram of energy conversion as function of mode number. Global energy conversion below 700 m into the first 10 modes, and for the sum of modes higher than 10 (rightmost bar), based on (black bars) our model complemented with (blue bar) the contribution of abyssal hills of Melet et al.25, (grey bars) Falahat et al.23,60, and (yellow bars) a global HYCOM simulation. Modes >10 were not computed in Falahat et al.23, and the HYCOM simulation does not resolve modes >5
