Fig. 6 | Nature Communications

Fig. 6

From: Loss-cone instability modulation due to a magnetohydrodynamic sausage mode oscillation in the solar corona

Fig. 6The alternative text for this image may have been generated using AI.

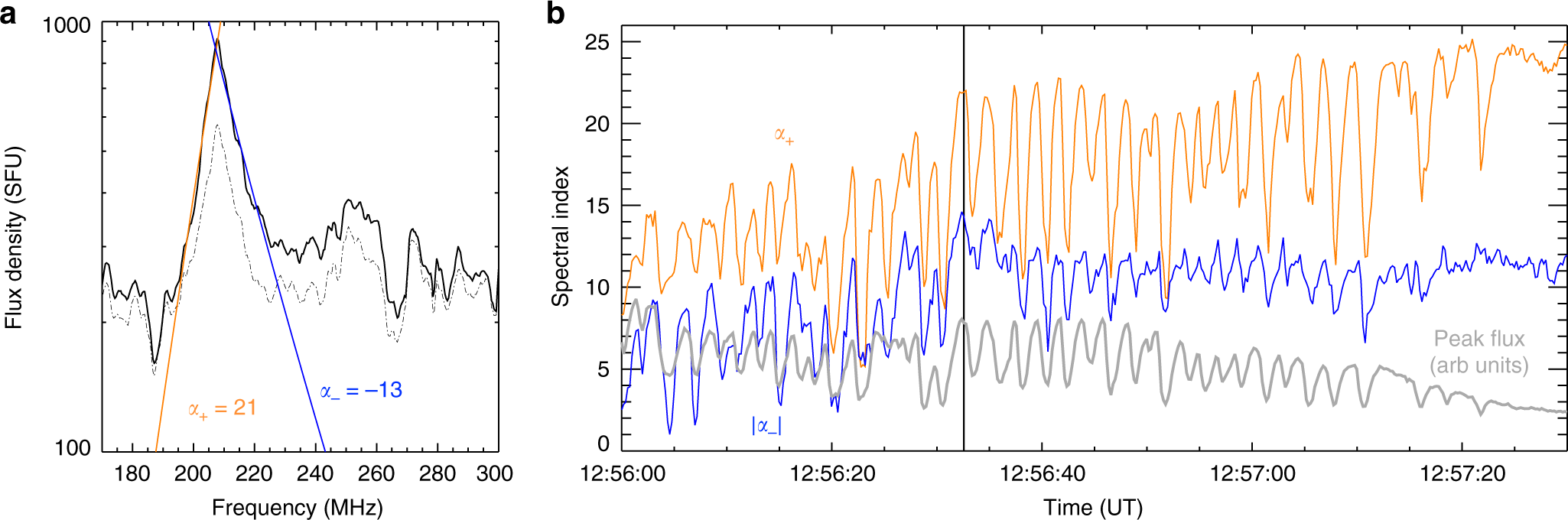

Pulsation flux density spectrum properties throughout time. a Flux density spectrum of a single pulse taken from the Orfées dynamic spectrum, showing pulse maximum at 12:56:30 UT in solid and pulse trough (approximately 1 s later) in dot-dash. Fits to both the positive (orange) and negative (blue) slopes of the pulse at max intensity indicate spectral indices of α+ = 21 and α− = −13. b The spectral indices over time for a subset of the pulsations from 12:56:00 to 12:57:30 UT, showing that the pulsing in intensity is also accompanied by a pulsing in the spectral indices
