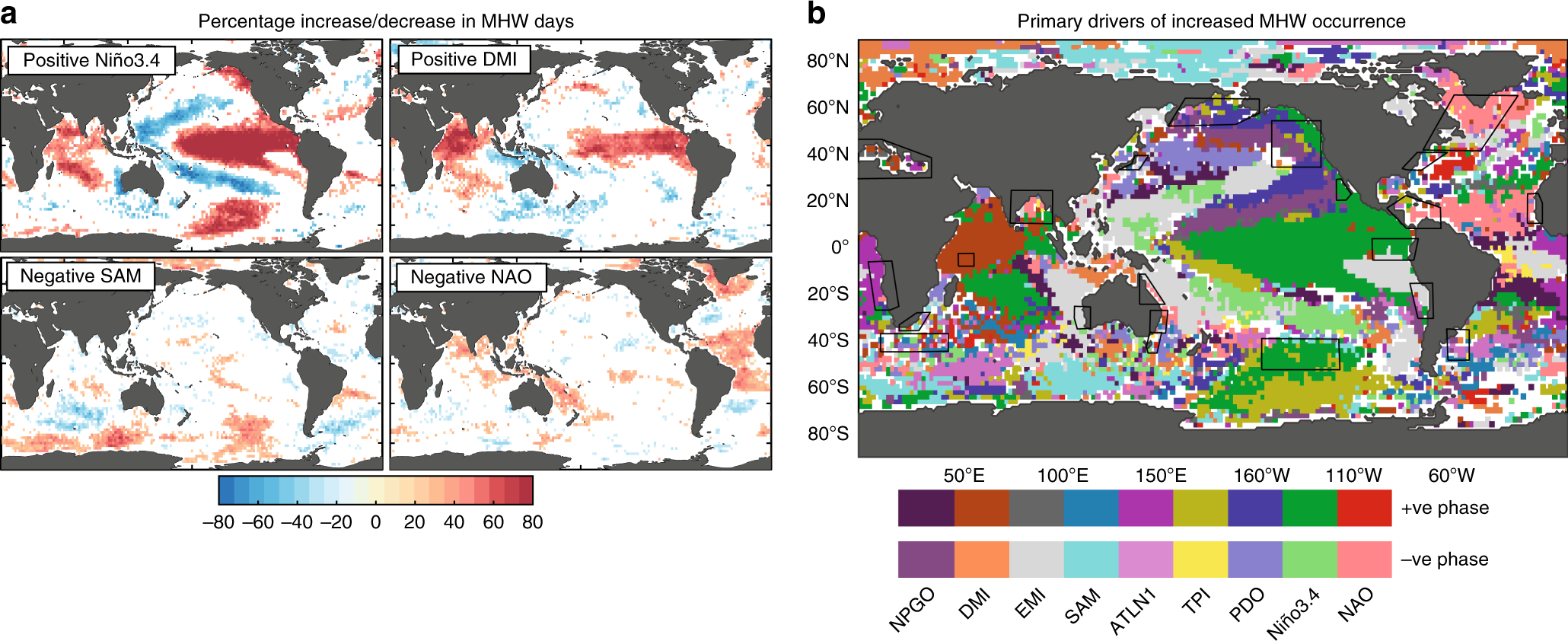

Fig. 3
From: A global assessment of marine heatwaves and their drivers
Links between enhanced or suppressed MHW occurrences and climate modes. a The percentage of days in which MHWs increase or decrease during a phase of four climate modes. b Summary schematic showing the locations where climate modes (and phases) have the greatest significant impact on enhancing or suppressing the number of MHW days (see Methods). The percentage of enhancement or suppression for individual climate modes used to construct this schematic are shown in Supplementary Figs. 7–15. When there are no statistically significant relationships between known climate modes and MHW occurrences, the areas are shaded in white
