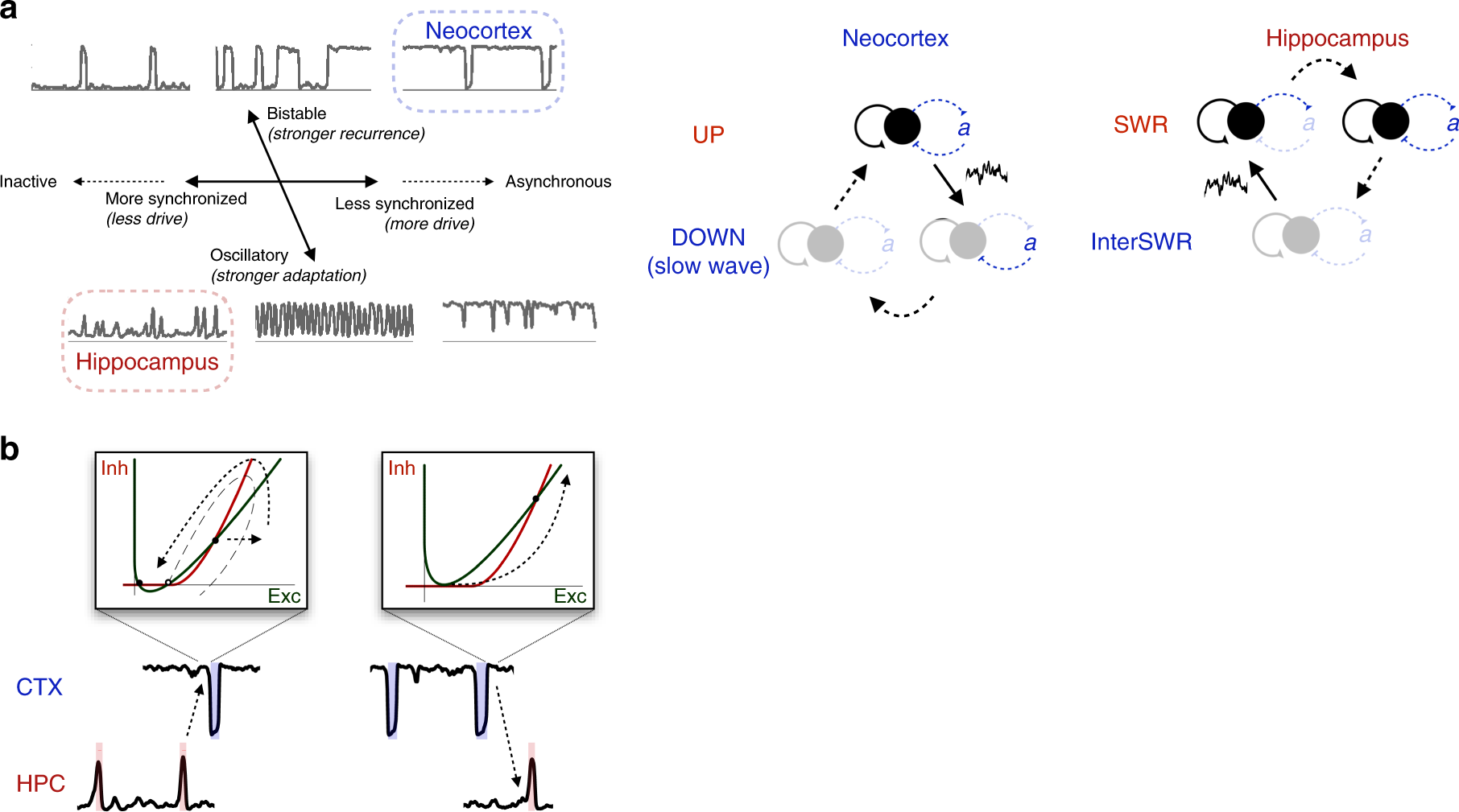

Fig. 7
From: NREM sleep in the rodent neocortex and hippocampus reflects excitable dynamics
Excitable dynamics of NREM sleep. a UP/DOWN alternation dynamics are characterized by a spectrum of two effective axes: a degree of synchronization axis determined by the level of drive in the system, and an oscillatory-bistable axis determined by the relative strength of recurrence and adaptation. The tilt of the oscillatory-bistable axis reflects the decrease in the amount of drive needed for equi-duration UP/DOWN states (I1/2) as recurrence is increased or adaptation is decreased. (Right) Schematic of the neocortical and hippocampal excitable regimes that produce slow waves and SWRs. Solid arrows indicate noise-induced transitions. b Hypothesis for mechanism of SWR/slow wave coupling by excitable dynamics
