Fig. 3
From: Coherent diffractive imaging of microtubules using an X-ray laser

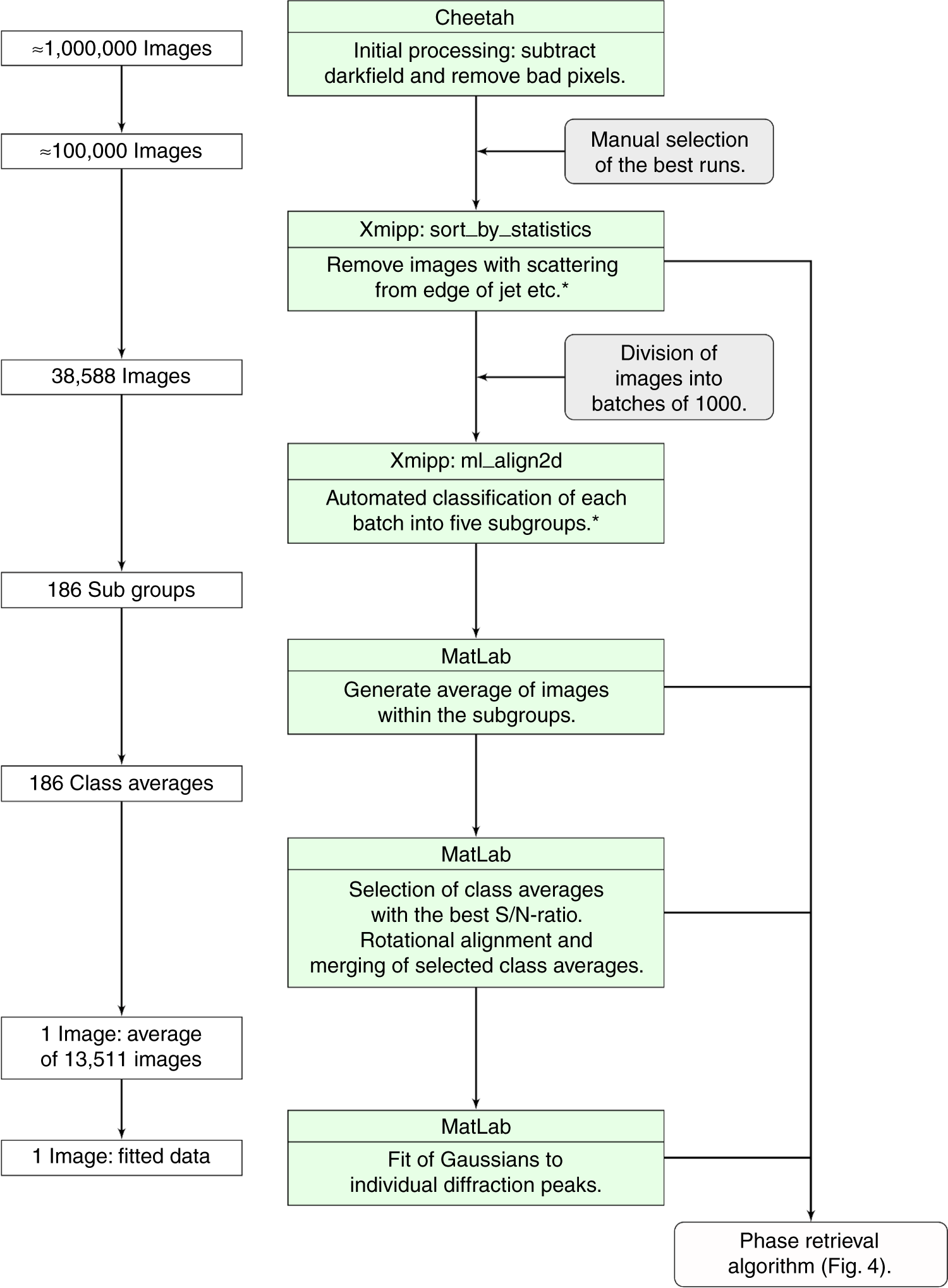

Flow chart for data processing of the diffraction images. Manual intervention is indicated in gray boxes. An asterisk indicates where data processing steps used only the four central detector panels
