From: Petroleum exploration increases methane emissions from northern peatlands

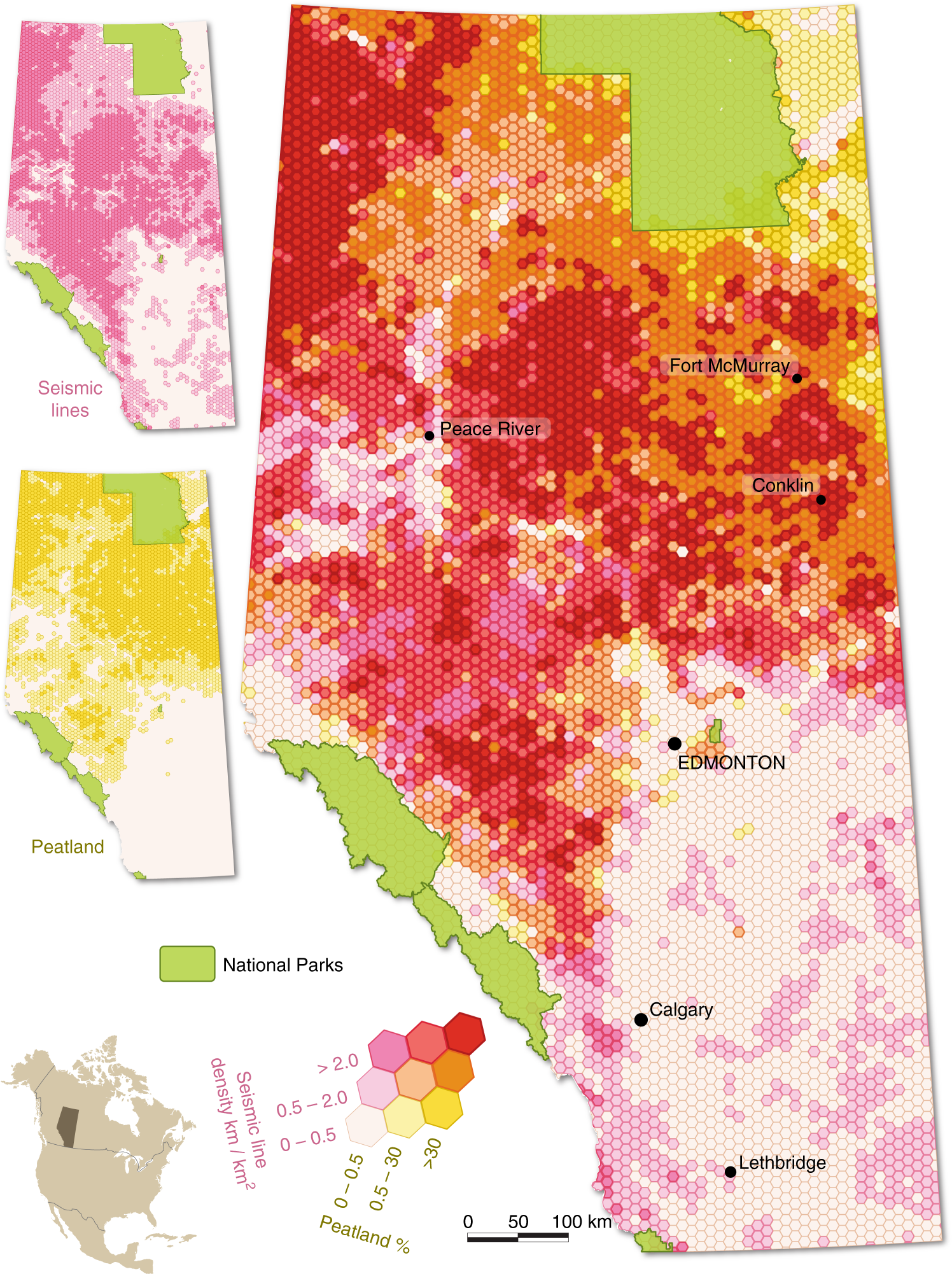

Peatland and seismic line density. This series of maps illustrates the spatial overlap of peatlands and seismic lines in Alberta, Canada. Overview #1 (Seismic lines) displays the spatial distribution of seismic lines across the province, measured in terms of density. Overview #2 (Peatland) shows the distribution of peatlands across the province, measured in terms of percent cover. In the main map, hot colors indicate where high densities of seismic lines and high proportions of peatlands coincide
