Fig. 4
From: Disentangling charge carrier from photothermal effects in plasmonic metal nanostructures

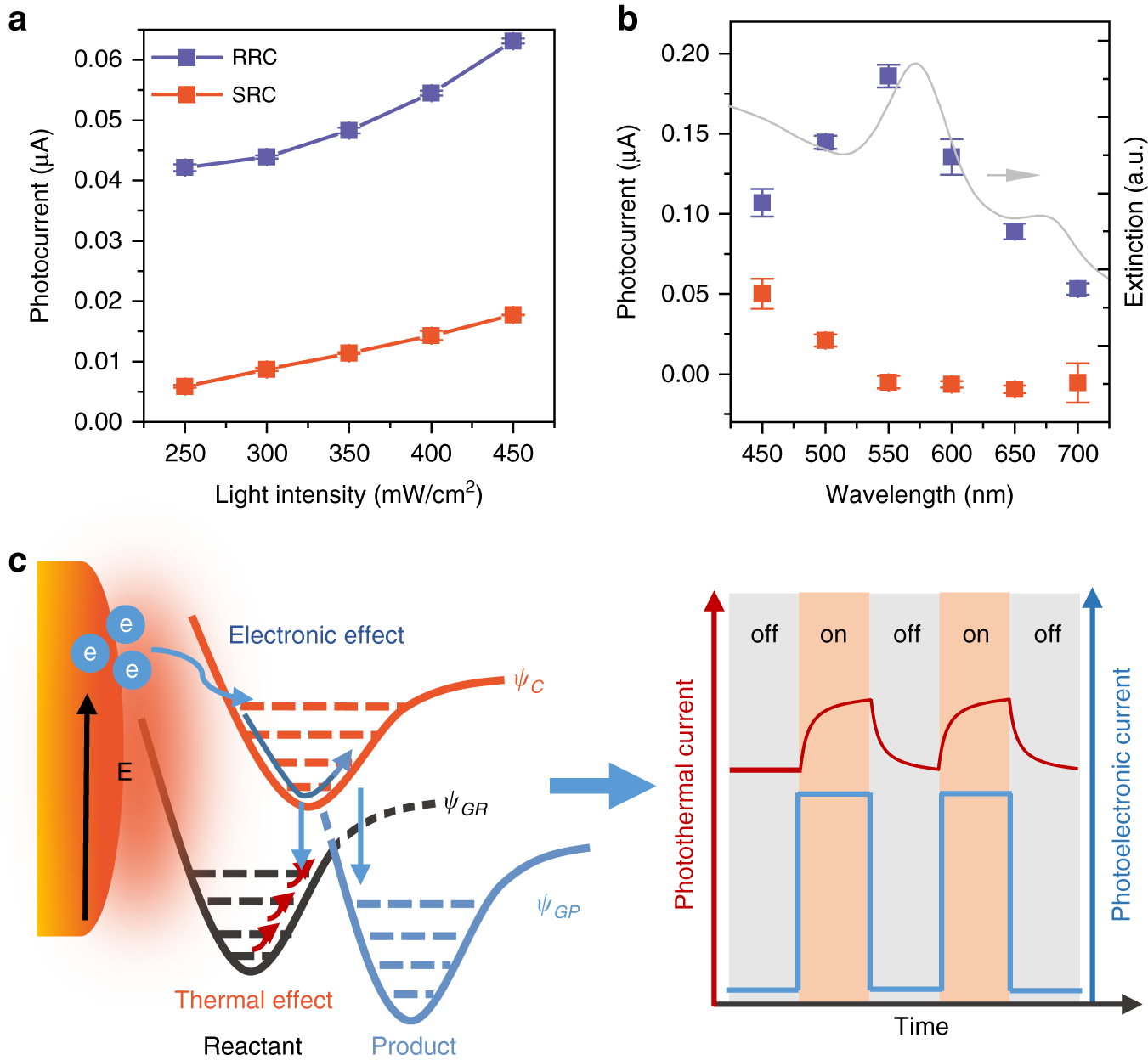

The photoelectronic current and photothermal current. a The RRC and SRC as a function of the incident light intensity. b The RRC and SRC as a function of the incident light wavelength. c The mechanism for the photoelectronic effect and photothermal effect of SPs on the electrochemical reaction. The schematic potential energy surface was simplified by using Reactant and Product. ψGR represents the ground state of the reactant; ψC represents the charged state of the reactant; and ψGP represents the ground state of the product. The error bars represent the standard deviation
