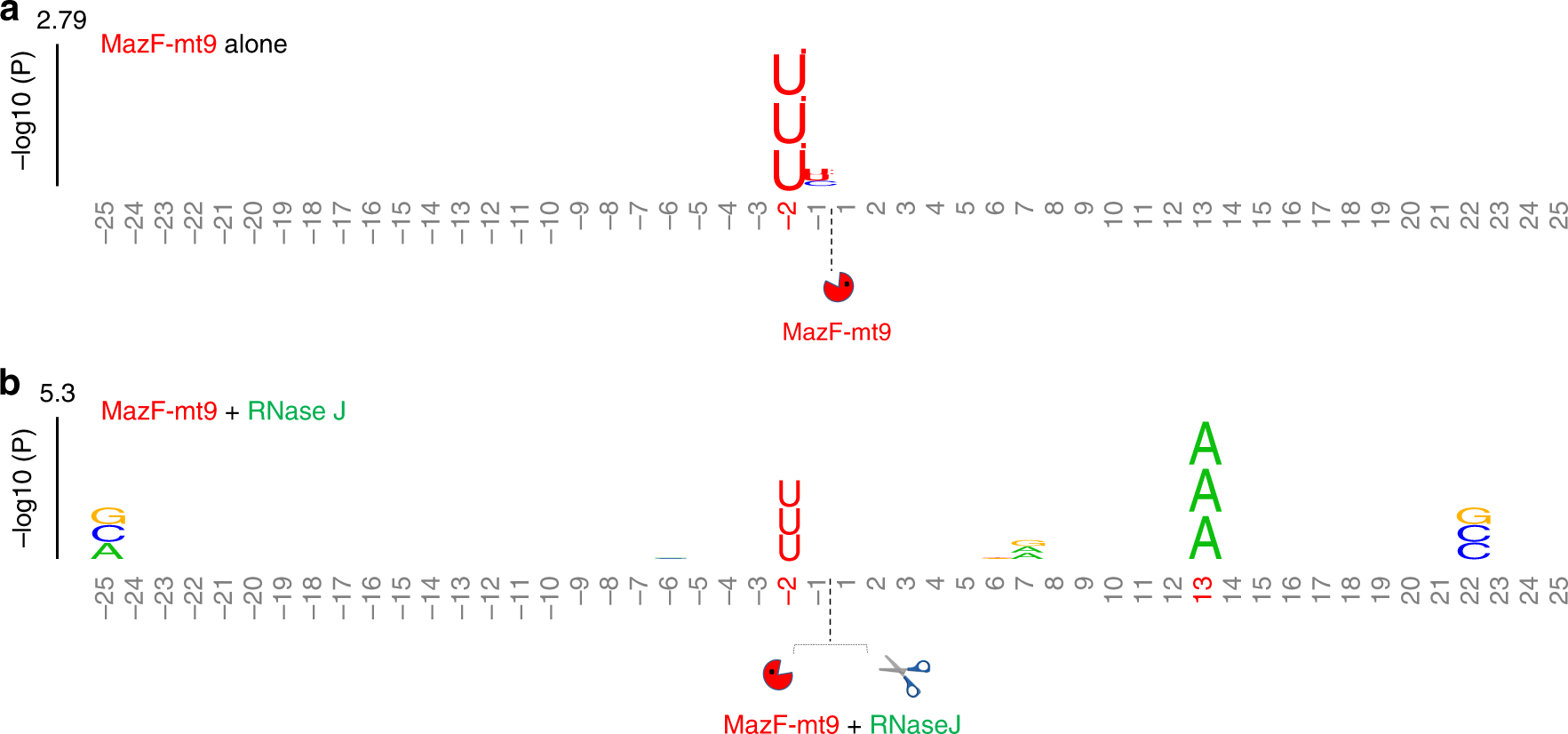

Fig. 5

M. tuberculosis RNase J cleaves 5′ of stalled ribosomes favoring expression of AAA-deficient transcripts. KpLogo³⁸ graphs derived from E. coli 5′ RNA-seq + MazF-mt9 (a) or +MazF-mt9 + RNase J (b) datasets compared to -MazF-mt9 samples. The enriched k-mers in the datasets are stacked vertically at the position of their initial nucleotide. The positions are numbered relative to the cleavage site (dotted line), with those achieving statistical significance (Bonferroni corrected p-value < 0.01) shown in red
