From: Quantitative characterization of 3D bioprinted structural elements under cell generated forces

Fig. 6The alternative text for this image may have been generated using AI.

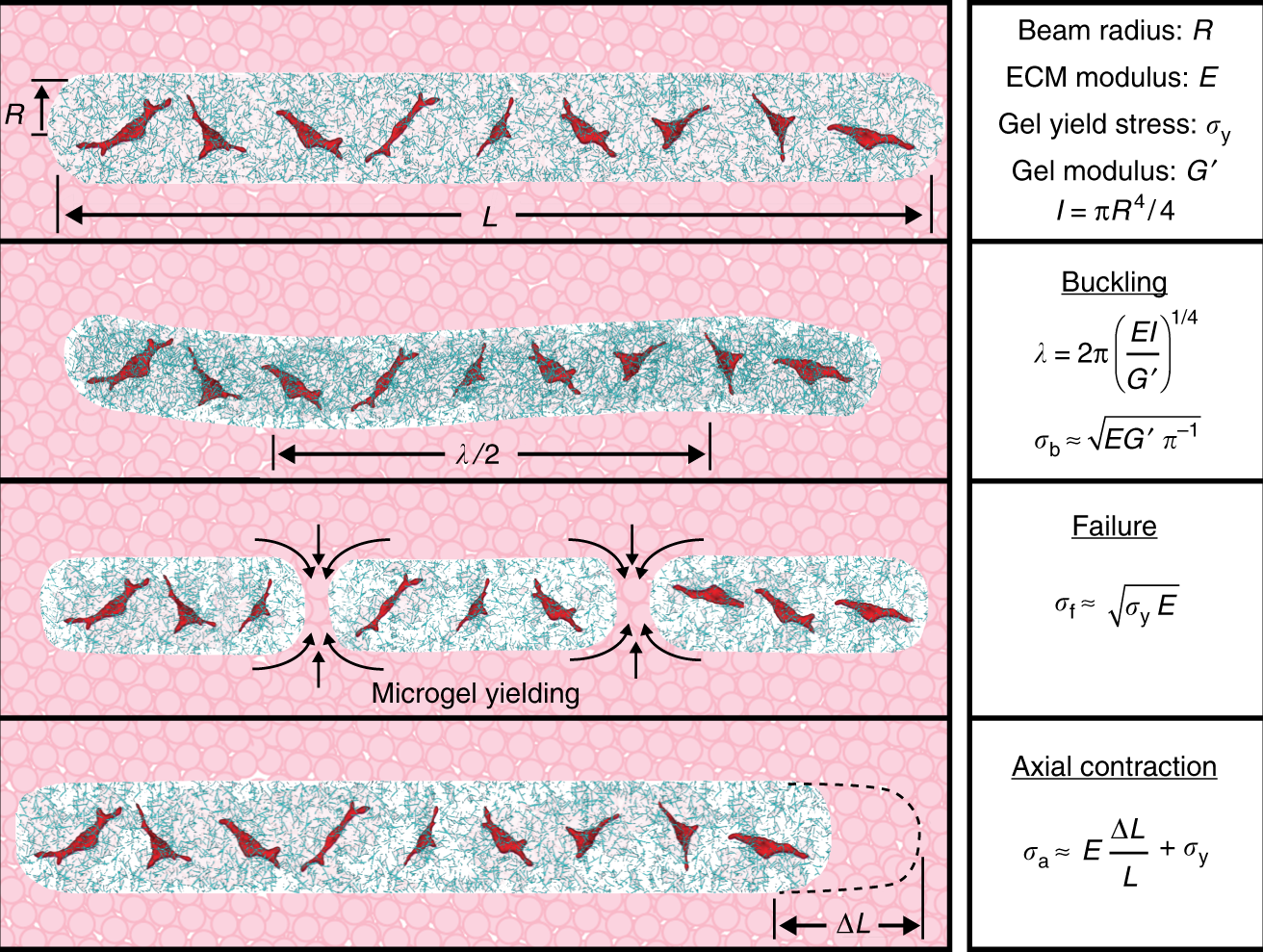

Summary of cell–ECM microbeam mechanics. By varying microbeam parameters and the material properties of the microgel medium, we observe a series of transitions between straight beams (top panel), buckled beams (second to top panel), broken beams (second to bottom panel) and axially contracted beams (bottom panel)
