From: Analogue of dynamic Hall effect in cavity magnon polariton system and coherently controlled logic device

Fig. 3

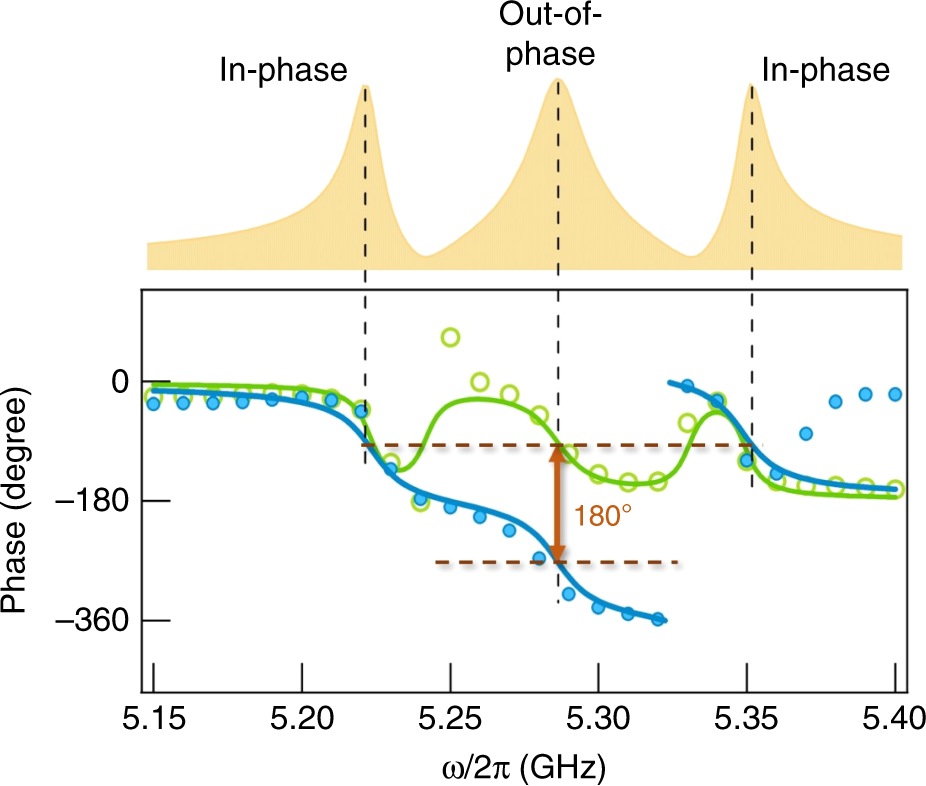

Phase of X-CMP dynamics. The measured phases of X-CMP dynamics in \(\tilde V_x\) and \(\tilde V_y\) have been plotted, displayed in green circles and blue circles, respectively. Here the phase in y-direction has been wrapped. By using the Hall-like transport model, these phases can be well explained. We show the calculated phases for both x- and y-directions with green solid line and blue solid line, respectively. A schematic X-CMP profile has been plotted above the figure to show the three non-degenerate polariton modes. We demonstrate that the two side modes are in-phase while the central mode shows out-of-phase behavior
