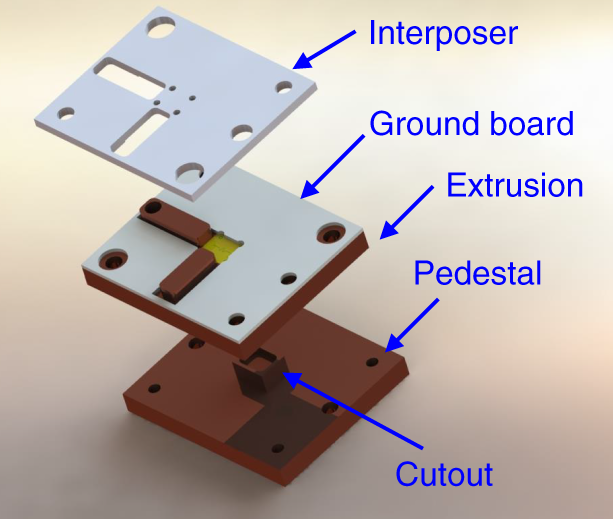

Fig. 6
From: Active protection of a superconducting qubit with an interferometric Josephson isolator
Illustration of the directional coupler package. It displays the different layers of the pogo-package used for housing the wideband, superconducting directional coupler. The pogo-package is used to provide 50 Ω matched vertical transitions between the directional coupler chip and its PCB
