Fig. 6

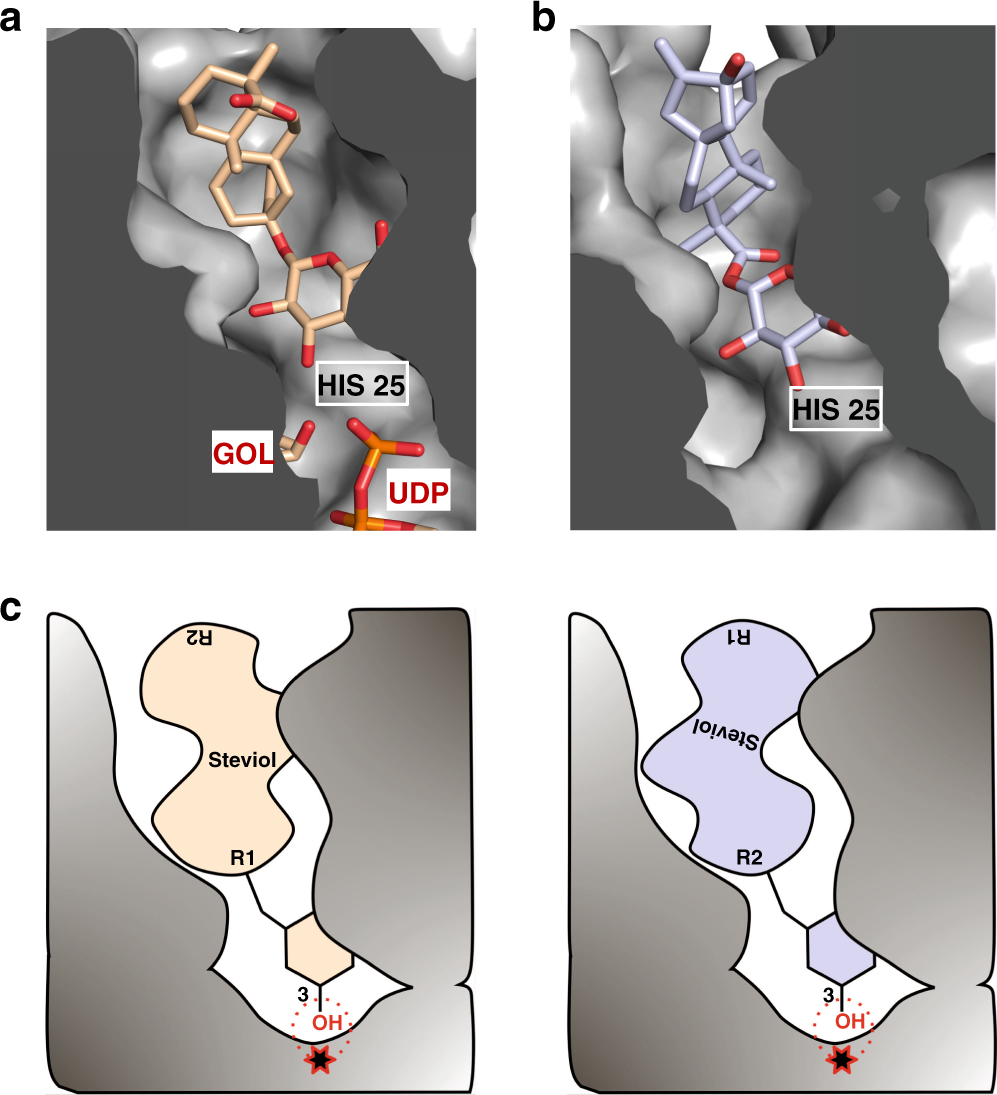

The two binding modes of the steviol substrates for the sugar transfers. a The normal binding mode for the R1 reaction. The binding mode for the R1 reaction is represented by the ternary complex structure with Rubu, in which the positions of Rubu, GOL, UDP and the catalytic residue His 25 are shown in the cross-section of the binding pocket. b The flipped binding model for the R2 reaction. The flipped binding mode for R2 reaction is modeled in the ternary complex structure with Reb A, in which the flipped steviol glucoside fragment (with carbons colored light purple) stretches the 3-hydroxyl of the glucose AR2 toward the catalytic site without any obvious clash in the binding pocket. c The cartoon representation of the normal and flipped binding modes. The catalytic residue His 25 and its reactivation region are represented by a red star and red dots, respectively, toward which the 3-hydroxyl group of either the R1 or R2 position would be presented
