From: Methylation analysis of plasma DNA informs etiologies of Epstein-Barr virus-associated diseases

Fig. 1

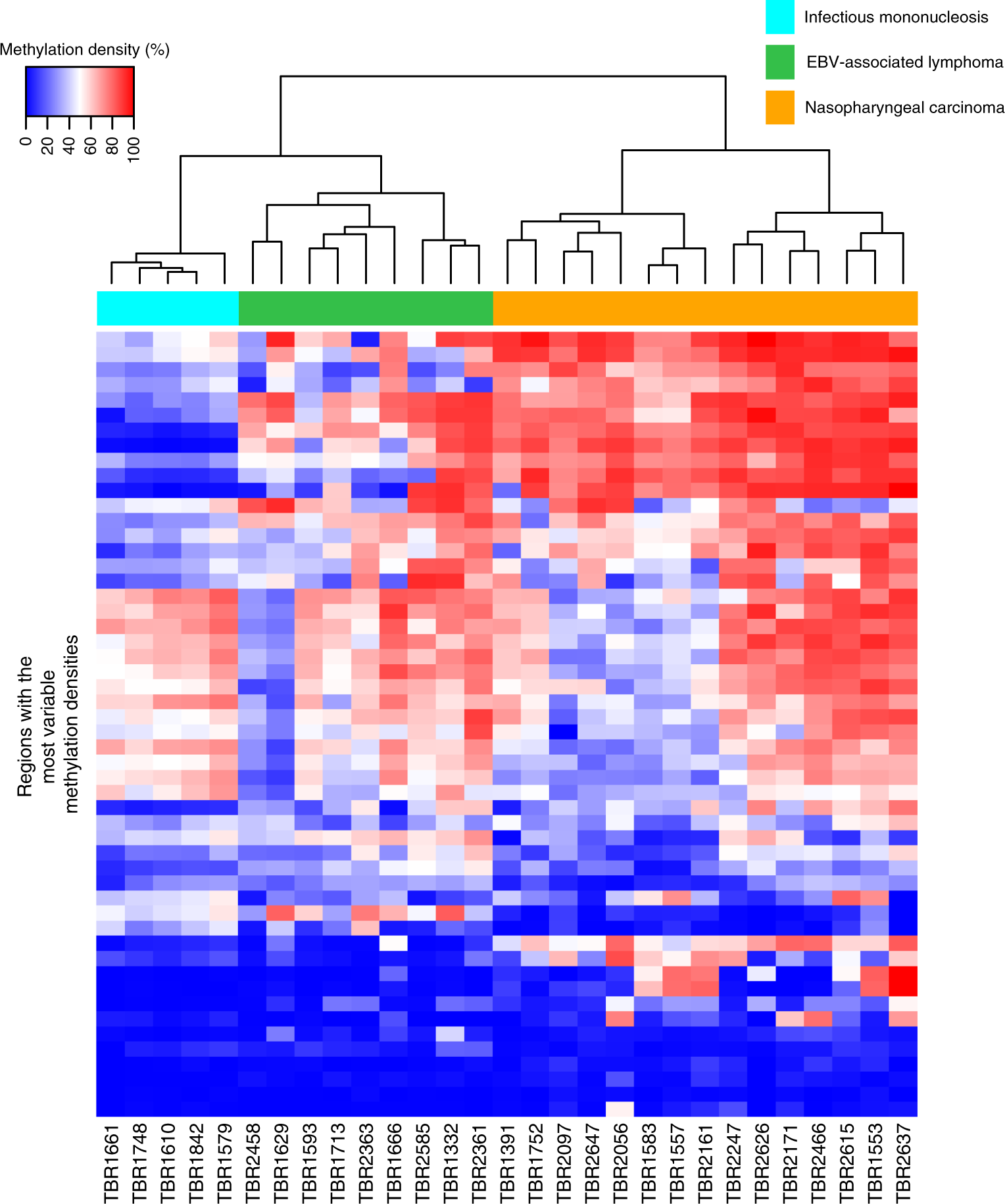

Distinctive plasma EBV DNA methylation profiles among different EBV-associated diseases. Unsupervised hierarchical clustering analysis of plasma EBV DNA methylome for the 29 samples from patients with different EBV-associated diseases. Each vertical bar represents one plasma sample. Each horizontal bar represents the selected 500-bp regions in the viral genome which demonstrated the most variable methylation densities (coefficient of variation > 30%) across all 29 samples. The corresponding methylation density of each region for all samples were represented in different colours. Samples of different patients with the same EBV-associated diseases were clustered together
