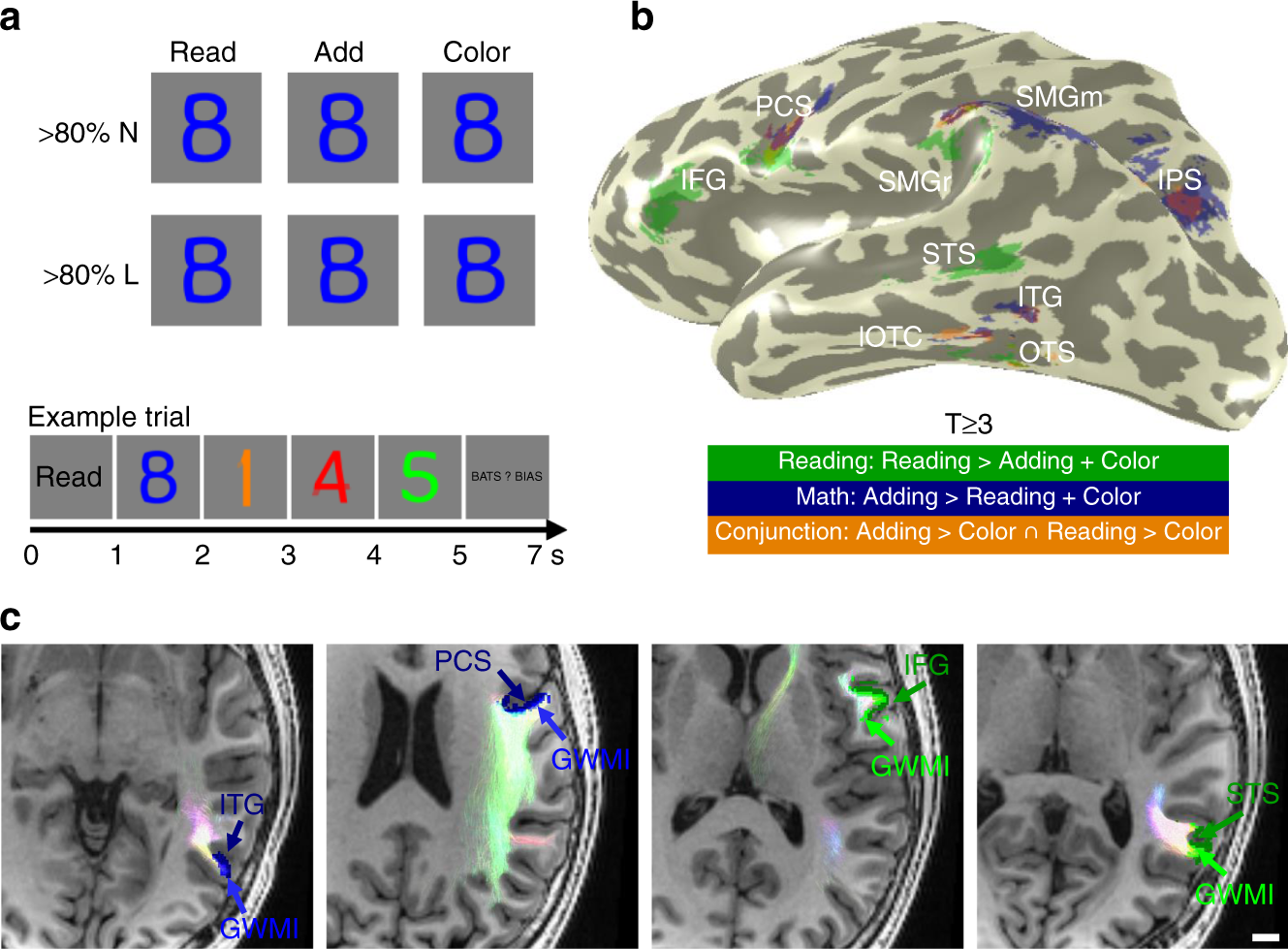

Fig. 1

Identification of gray matter regions of the math and reading networks and their functionally-defined white matter tracts (fWMT). a FMRI experiment used to define math- and reading-related regions. Subjects viewed morphs between numbers and letters, containing either >80% letter (<20% number) or >80% number (<20% letter) information. At the beginning of each trial, a cue (Read/Add/Color) indicated which task should be performed, then four stimuli of the same morph type appeared for 1 s each, followed by an answer screen presented for 2 s. Subjects indicated their answer with a button press. Identical stimuli were presented across tasks. Trial structure is shown at the bottom. b Gray matter functional regions of interest (fROIs) of the math and reading networks. Green: Reading-related regions were defined based on higher responses in the reading task than other tasks; Blue: Math-related regions were defined based on higher responses in the adding task than other tasks; Orange: Regions that responded more strongly during reading vs. color and adding vs. color tasks. All fROIs were defined using a T ≥ 3 (voxel level) threshold in each participant’s brain. c Example fROIs and their respective fWMTs in axial slices of a representative participant. Blue: Math fROIs. Green: Reading fROIs; lighter shades of blue and green under each fROI: respective gray-white-matter-interface (GWMI) of that fROI. The fiber tracts that terminate at the GWMI of each fROI are shown in pastel colors; the colors of the tracts indicate the main diffusion direction, pink: right/left; light green: anterior/posterior; light blue: superior/inferior. Scale bar in c indicates 1 cm. IFG inferior frontal gyrus, PCS precentral sulcus, SMGr reading fROI in supramarginal gyrus, SMGm math fROI in supramarginal gyrus, STS superior temporal sulcus, ITG inferior temporal gyrus, OTS occipito-temporal sulcus, IPS intraparietal sulcus, lOTC lateral occipito-temporal cortex
