Fig. 2
From: Interplay of protein corona and immune cells controls blood residency of liposomes

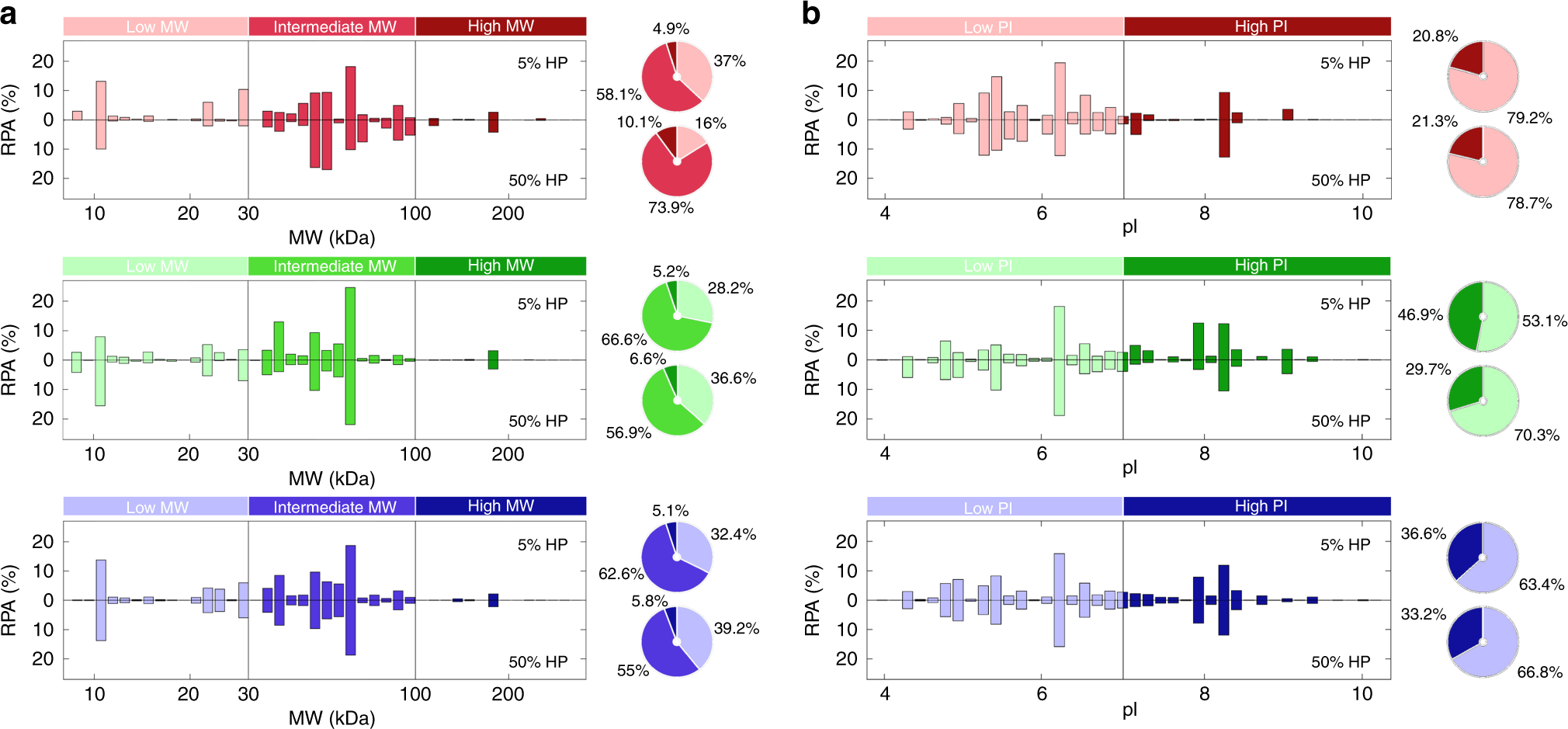

Classification of corona by molecular mass and isoelectric point. Relative protein abundance (RPA) of the corona proteins identified on liposomes by nanoLC–MS/MS after interaction with human plasma (HP) according to their molecular weight (a) and calculated isoelectric point (b) for DOTAP (red), DOPC (green), and DOPG (blue) liposomes. Each liposome formulation was incubated with HP = 5 % (upper panels) and HP = 50% (lower panels)
