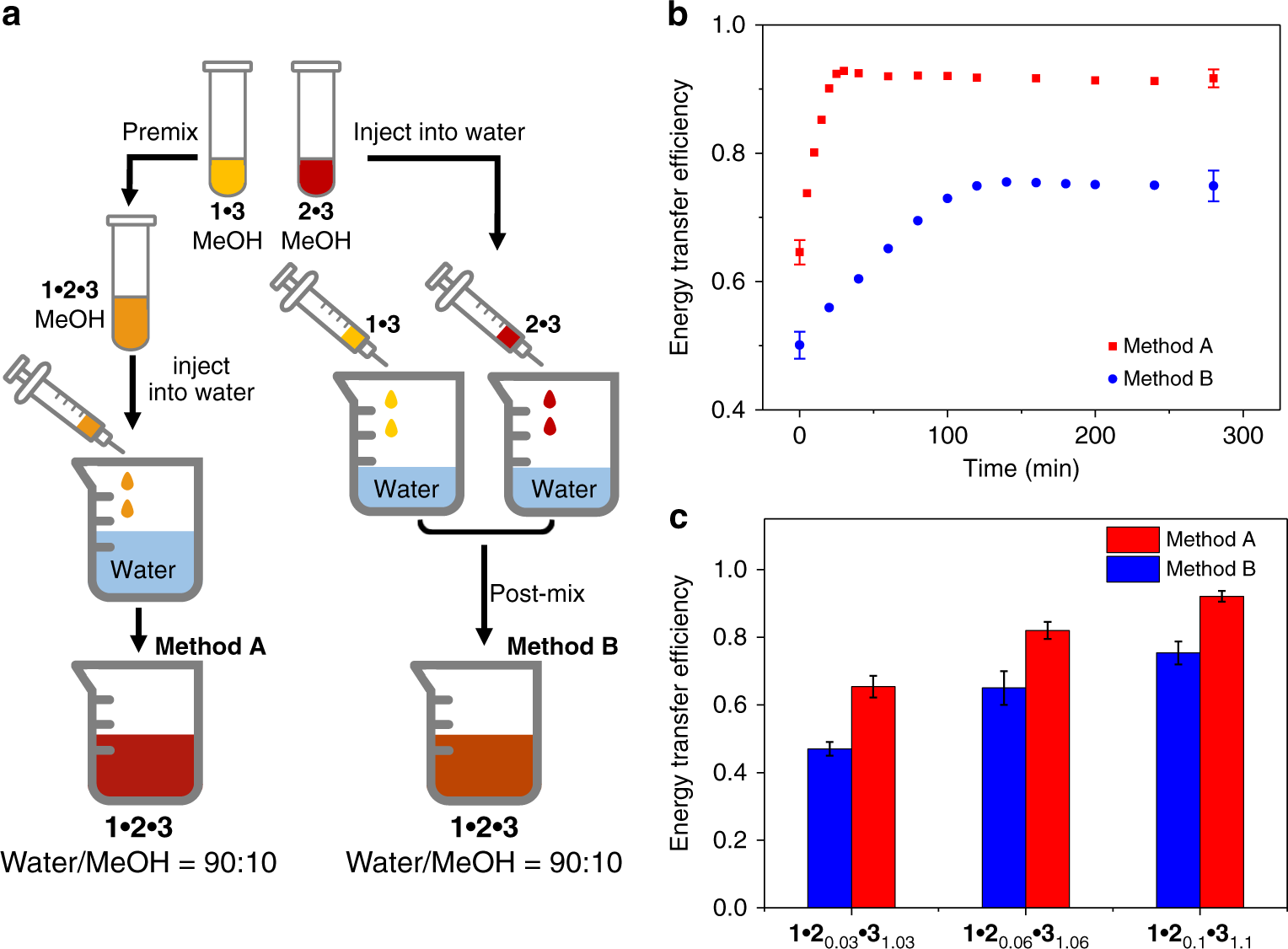

Fig. 7
Characterization of energy transfer dynamics of 1•2•3. a Schematic illustration of two preparation methods toward the ternary complex 1•2x•3(1+x). b Time dependence of energy transfer efficiency for complex 1•20.1•31.1. c Energy transfer efficiency for complexes 1•20.03•31.03, 1•20.06•31.06, and 1•20.1•31.1, by employing the two different preparation methods [1: 5.00 × 10−5 M in water/MeOH (90:10, v/v)]. All error bars represent s.e.m. from triplicate independent measurements
