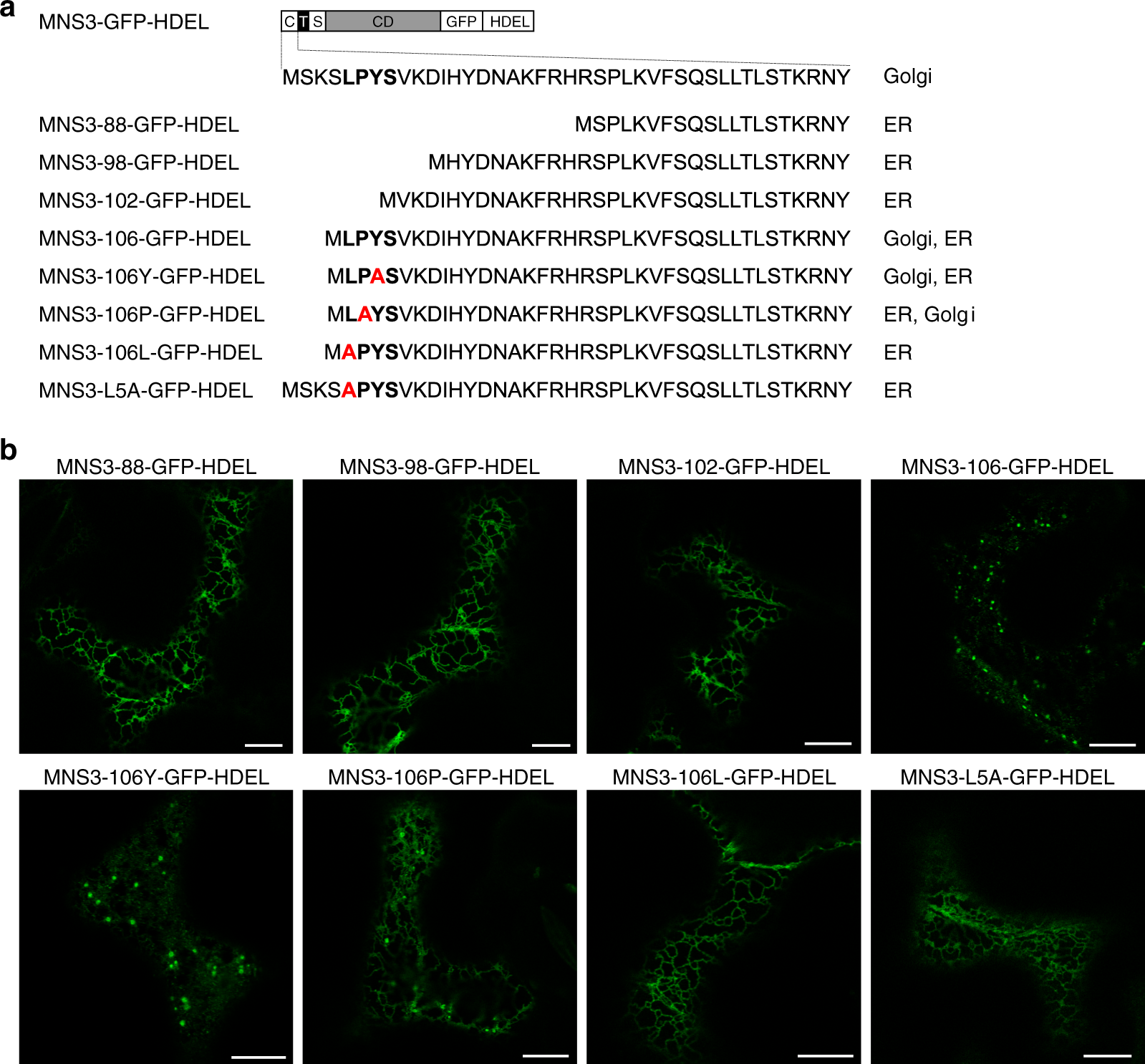

The cytoplasmic tail of MNS3 contains an amino acid sequence motif that promotes its Golgi retention. a The modular organization of MNS3-GFP-HDEL cytoplasmic tail deletion and mutation constructs and the subcellular localization of fusion proteins in N. benthamiana leaf epidermal cells are shown. The amino acid sequence of the cytoplasmic tail is given. b Confocal images of representative cells showing the subcellular localization of MNS3-GFP-HDEL tail-mutated fusion proteins. Images were acquired 2 dpi. Scale bars = 10 µm
