Fig. 2
From: The grain yield modulator miR156 regulates seed dormancy through the gibberellin pathway in rice

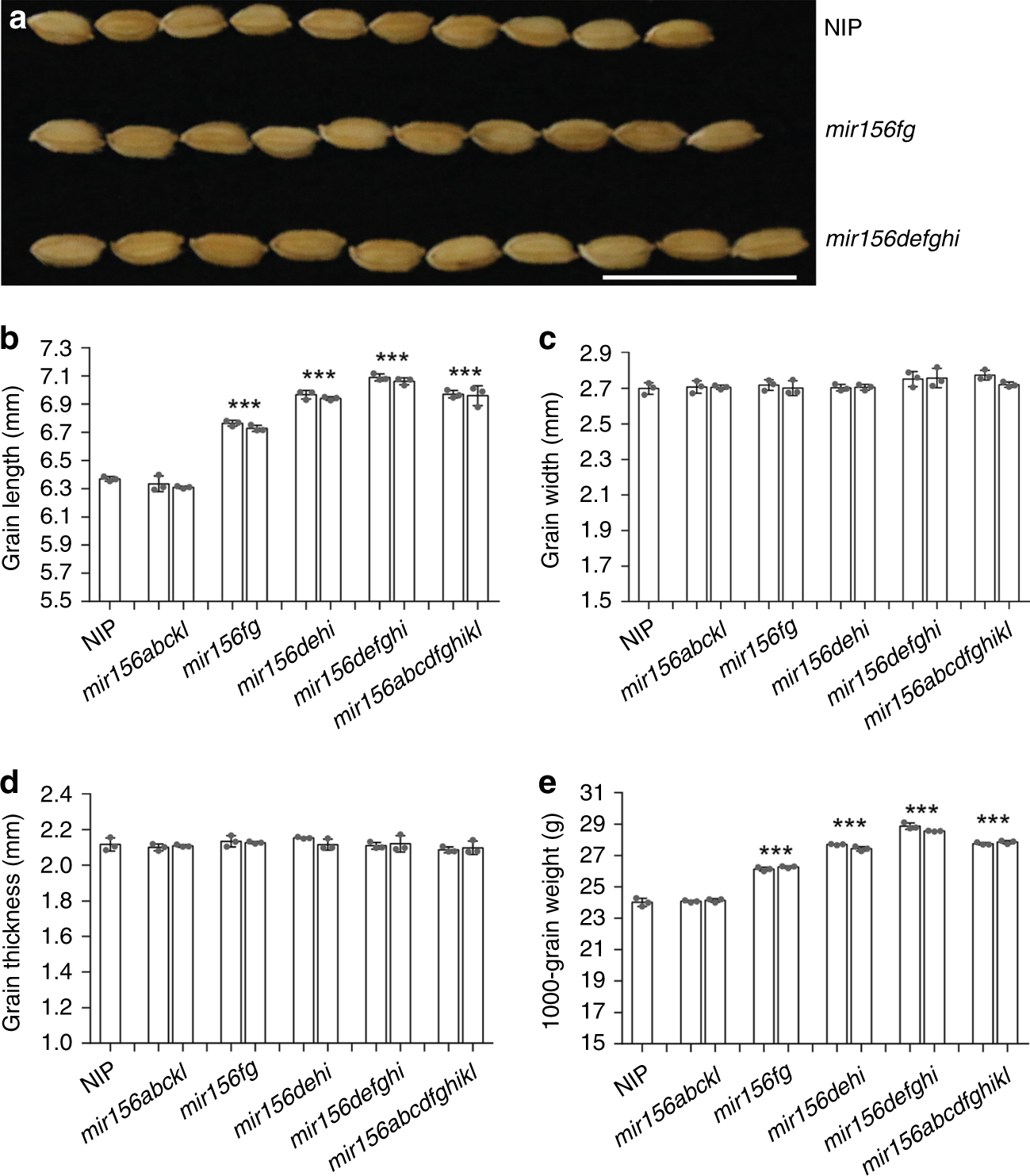

Grain shape analyses of the mir156 mutants. a Seeds of the wild type, mir156fg and mir156defghi. Scale bar, 2 cm. b–d Grain lengths (b), widths (c), and thicknesses (d) of the wild type, mir156abckl, mir156fg, mir156dehi, mir156defghi, and mir156abcdfghikl. e 1000-grain weights of the wild type, mir156abckl, mir156fg, mir156dehi, mir156defghi, and mir156abcdfghikl. Data are presented as means ± SD. Each bar in the bar charts represents an independent line. P values (versus the wild type) were calculated with Student’s t-test. ***P < 0.001. NIP, Nipponbare. Source data are provided as a Source Data file
