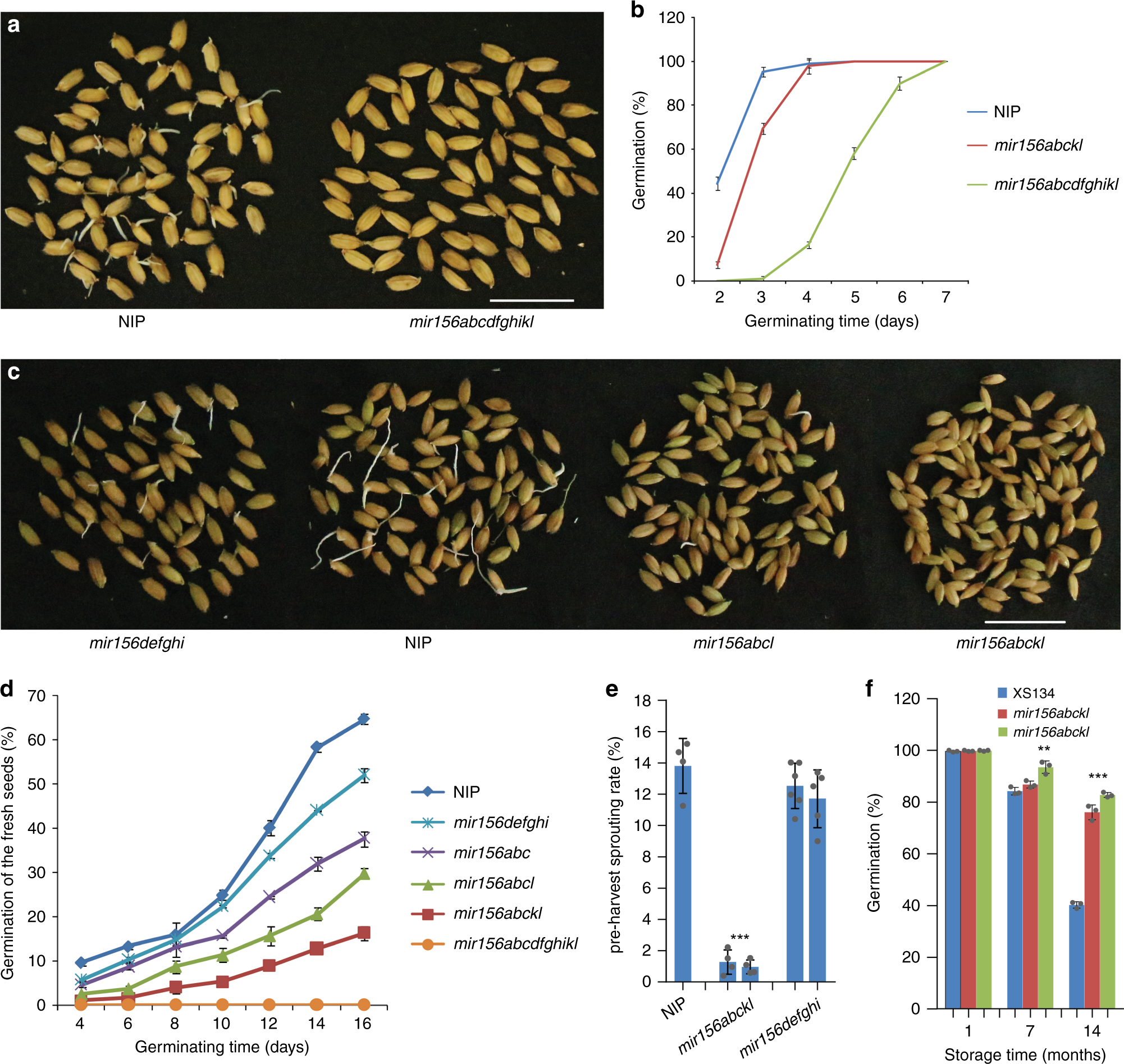

Fig. 3
From: The grain yield modulator miR156 regulates seed dormancy through the gibberellin pathway in rice
mir156 mutations enhanced seed dormancy. a, b Seed germination comparison of the wild type, mir156abckl and mir156abcdfghikl. After harvest, the seeds for this assay were immediately dried in a 42 °C dry oven for 7 days, and then stored in a 20 °C dry cabinet for 2 weeks. Scale bar, 2 cm. c, d Fresh seed germination comparison of the wild type, mir156abc, mir156abcl, mir156abckl, mir156defghi, and mir156abcdfghikl. Scale bar, 2 cm. e PHS rates of wild-type, mir156abckl and mir156defghi seeds in Hangzhou in the year 2018. f Germination rates of wild-type and mir156abckl seeds after storage for the indicated times at room condition in Hangzhou. Each bar in the bar charts represents an independent line. Data are presented as means ± SD. P values (versus the wild type) were calculated with Student’s t-test. ***P < 0.001. NIP, Nipponbare. Source data are provided as a Source Data file
