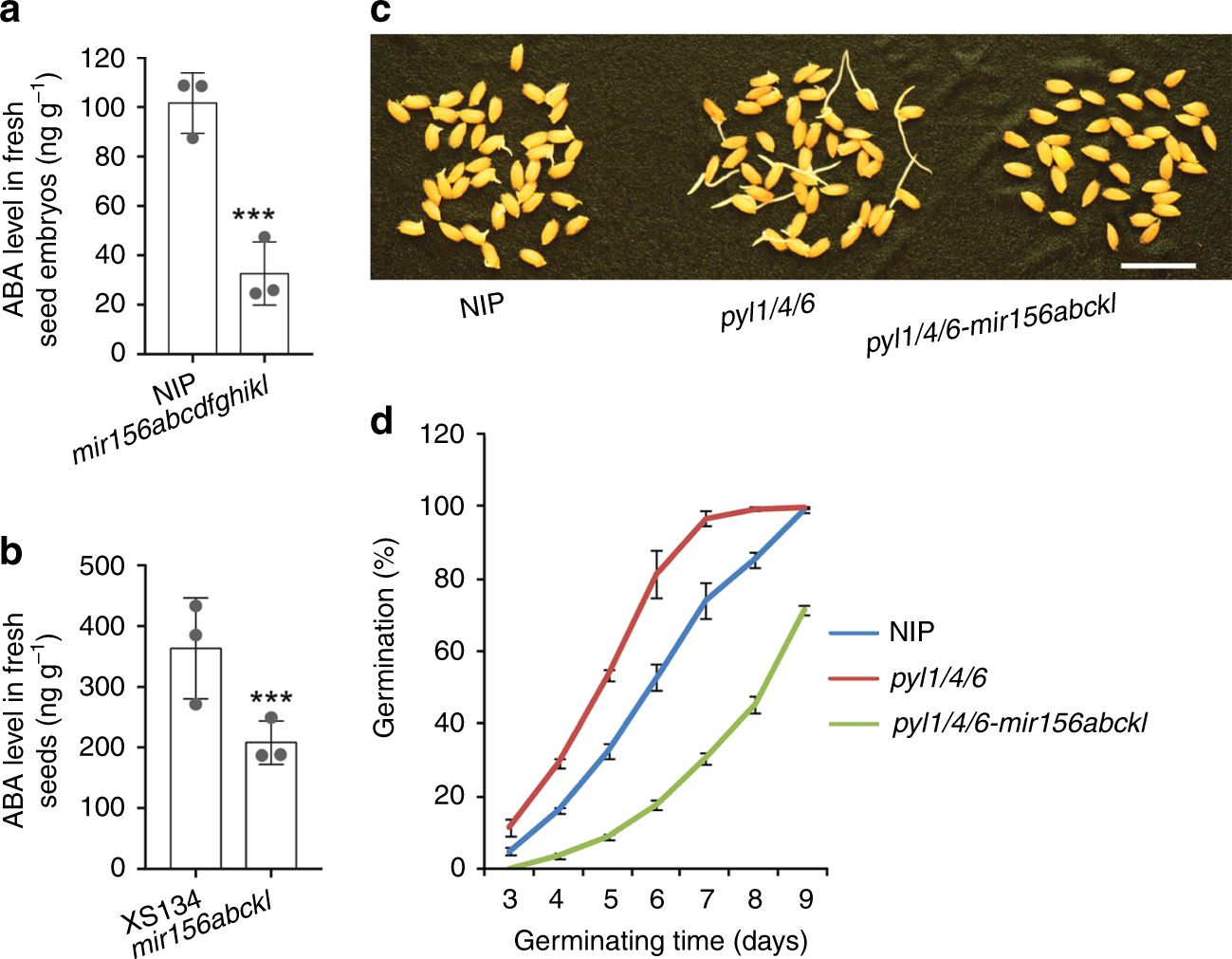

Fig. 4
From: The grain yield modulator miR156 regulates seed dormancy through the gibberellin pathway in rice
Enhanced seed dormancy in mir156 mutants is not mediated by the ABA pathway. a ABA level in wild-type and mir156abcdfghikl fresh seed embryos. b ABA level in wild-type and mir156abckl fresh seeds. c, d Fresh seed germination comparison of the wild type, pyl1/4/6 and pyl1/4/6-mir156abckl. Scale bar, 2 cm. Data are presented as means ± SD. P values (versus the wild type) were calculated with Student’s t-test. ***P < 0.001. NIP, Nipponbare. Source data are provided as a Source Data file
