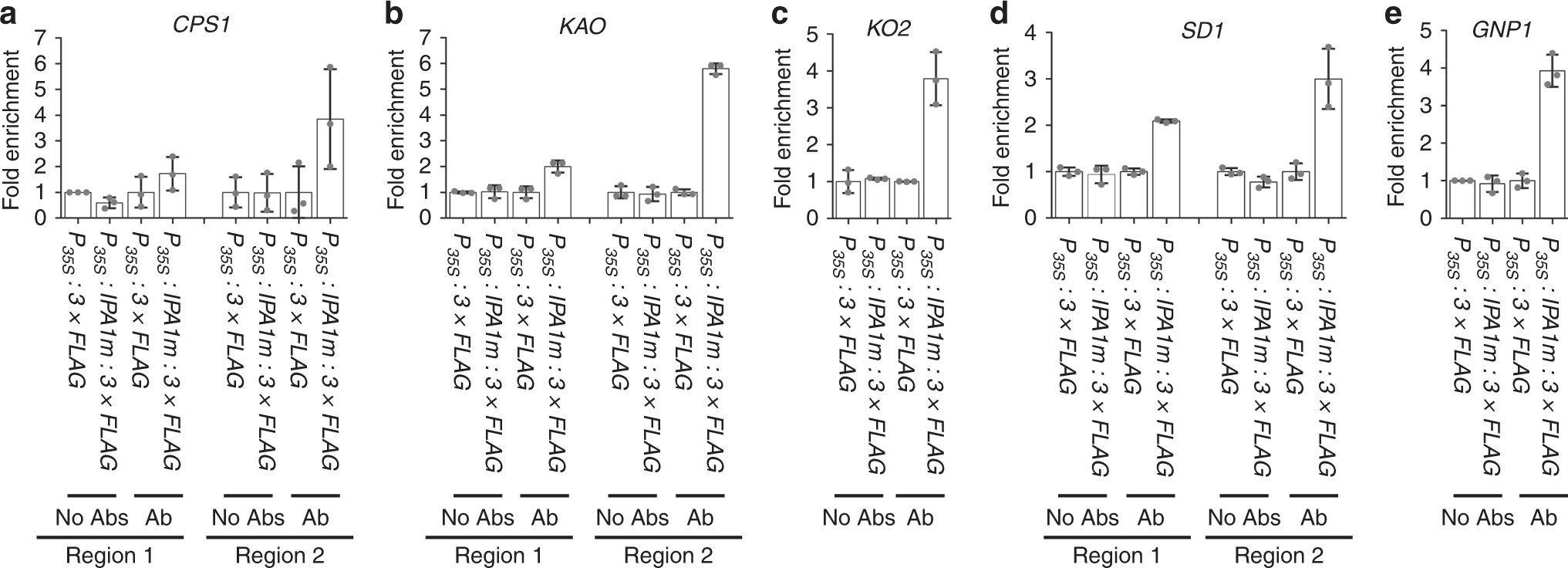

Fig. 7
From: The grain yield modulator miR156 regulates seed dormancy through the gibberellin pathway in rice
ChIP-qPCR assays showing in vivo interactions between IPA1 and promoters of five key GA biosynthetic genes. a–e Interactions between IPA1 and promoters of CPS1 (a), KAO (b), KO2 (c), SD1 (d), and GNP1 (e). IPA1m, IPA1-coding sequence with synonymous mutations at miR156-targeting site; NoAbs, without antibodies; Ab, antibodies against FLAG; regions, the fragments in the promoters detected for interactions with IPA1. Values are means ± SE (n = 3). The fold enrichment was normalized against the promoter of UBIQUITIN. Source data are provided as a Source Data file
