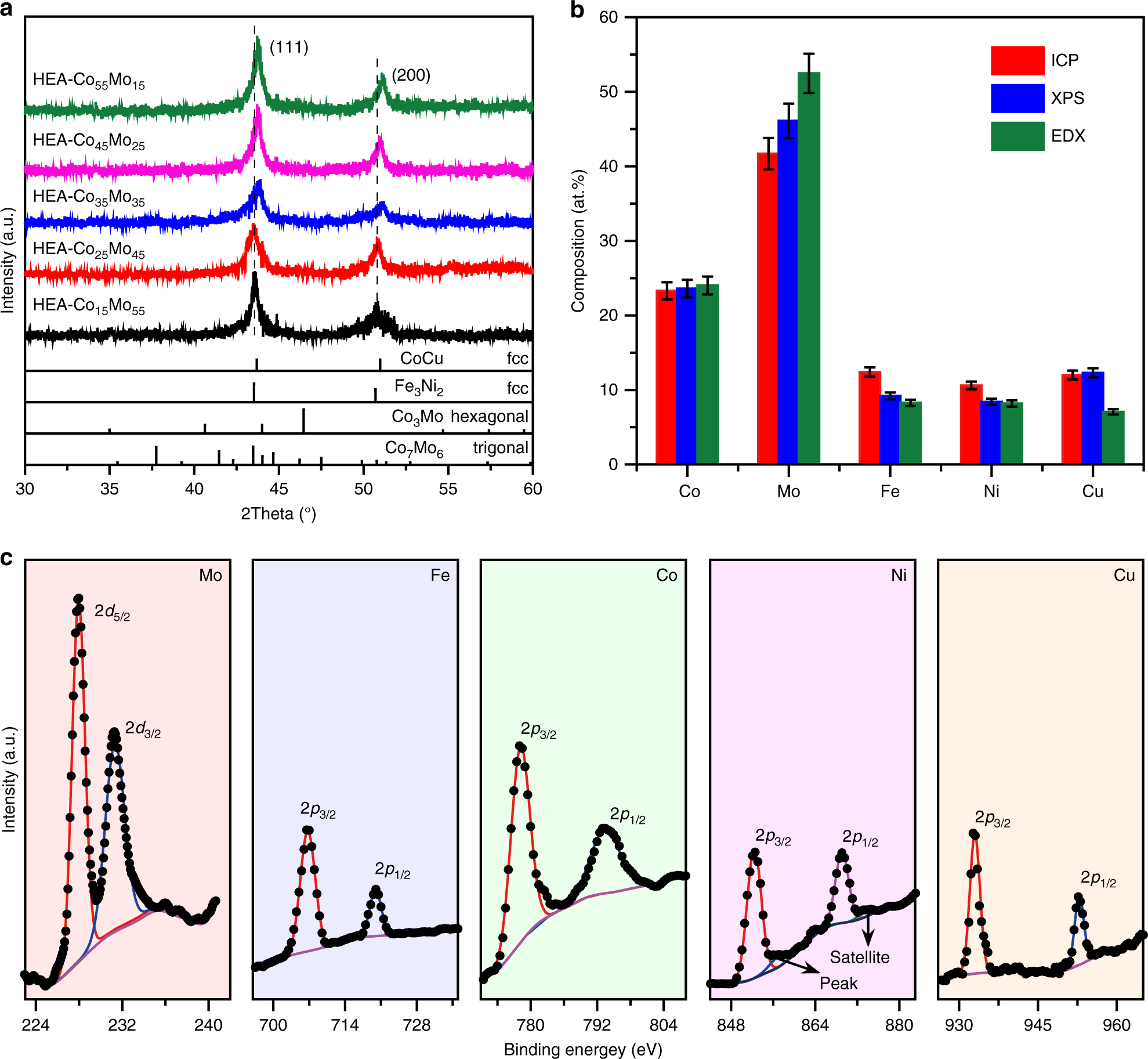

Fig. 3
From: Highly efficient decomposition of ammonia using high-entropy alloy catalysts
Characterization of the HEA-CoxMoy nanoparticles. a XRD patterns of the HEA nanoparticles supported on CNFs in comparison to the bimetallic standards of CoCu (PDF# 50–1452), Fe3Ni2 alloy (PDF# 65–5131), Co3Mo (JCDPS no. 29–0488), and Co7Mo6 (JCDPS no. 29–0489). b Comparison of the composition analyses for the HEA-Co25Mo45 nanoparticles based on three different techniques: ICP-MS, XPS, and EDX, verifying the alloy homogeneity in the HEA nanoparticles. Error bars denote SDs. c XPS spectra collected at the Mo 3d, Fe 2p, Co 2p, Ni 2p, and Cu 2p edges for the HEA-Co25Mo45 nanoparticles
