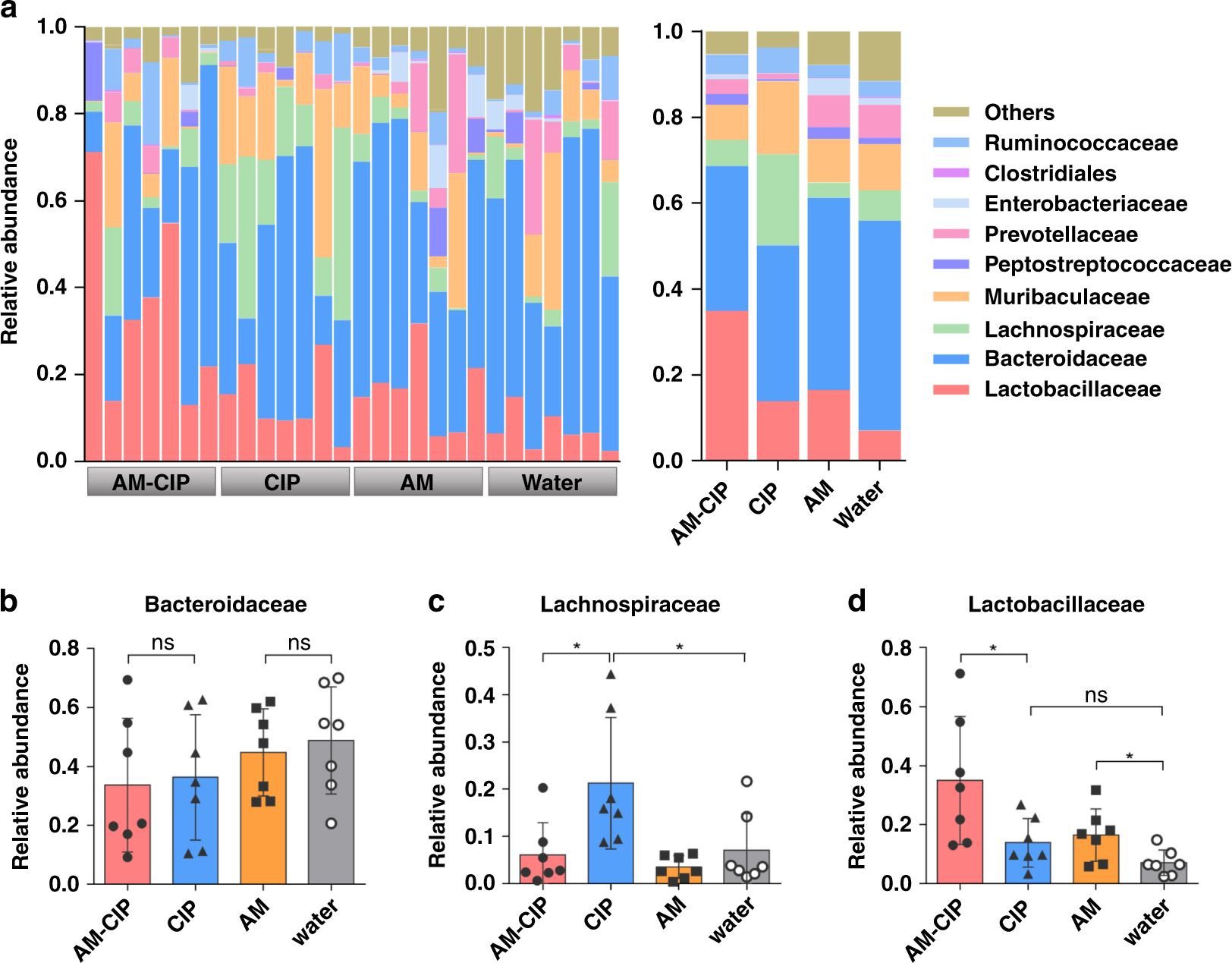

Fig. 3
From: Pathogen-targeting glycovesicles as a therapy for salmonellosis
Gut microbial analysis in infected mice after treatment. a Left: bacterial taxonomic profiling at family level of the gut microbiota in feces from infected mice post therapy. Right: average composition of the family level in four groups. Relative abundance of Bacteroidaceae (b), Lachnospiraceae (c), and Lactobacillaceae (d) obtained in fecal microbiota from the LefSe results. Data are shown as mean ± SD, n = 7 mice per group and each dot represents data from an individual animal. A single asterisk indicate p-values of <0.05, ns, no statistical significance (two-tailed Student’s t-test). Source data are provided as a Source Data file
