Fig. 2
From: Surface acoustic wave photonic devices in silicon on insulator

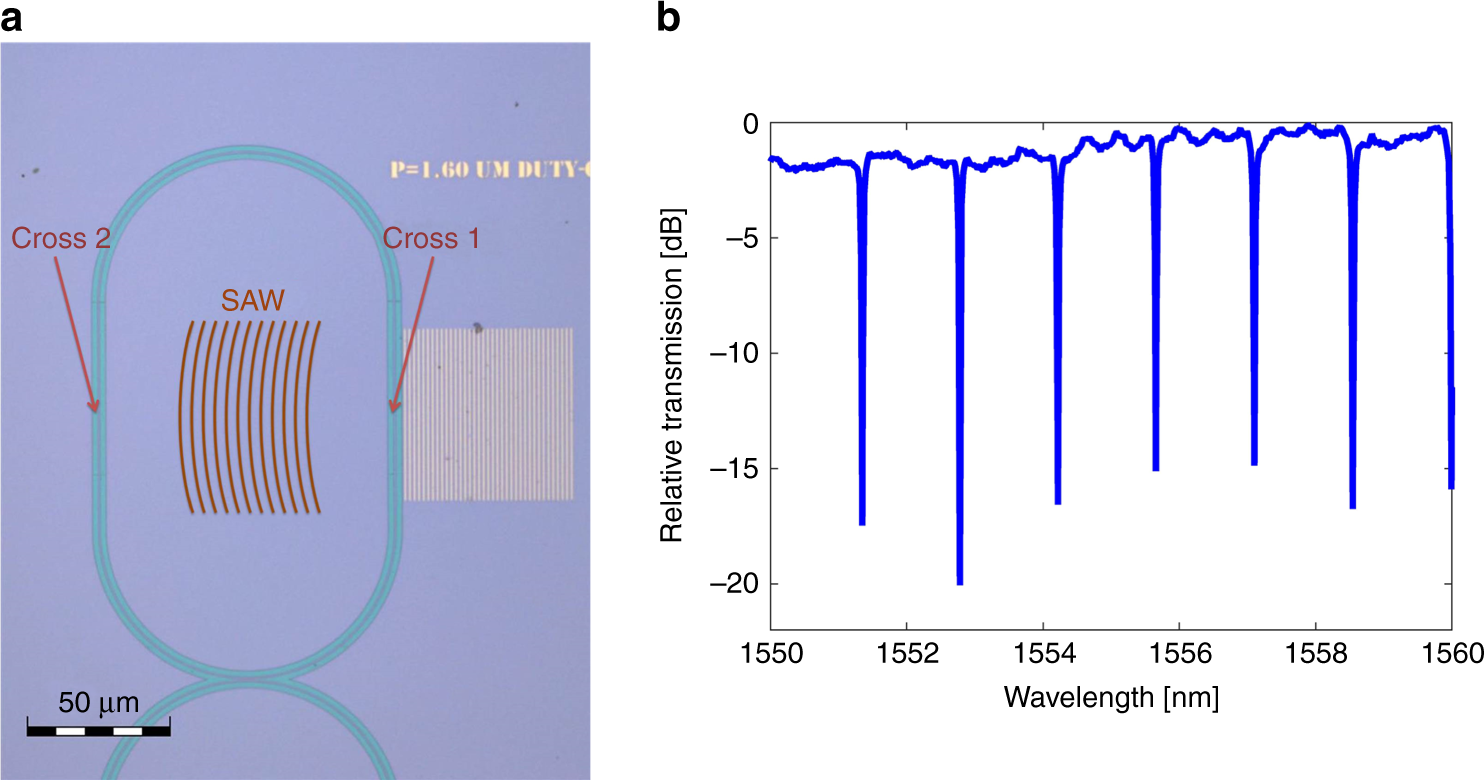

Optical characterization of devices under test. a Top-view image of a race-track resonator waveguide in silicon on insulator. A pattern of thin gold stripes with a period of 1.6 µm is defined near the resonator waveguide. The scale bar represents 50 µm. Surface-acoustic waves propagating away from the grating region are illustrated. The surface wave-front crosses two straight sections of the race-track waveguide. The acoustic propagation delay between the two events is 28.5 ns. b Measured normalised optical power transfer function of the race-track resonator. The loaded quality factor of the resonator is ~40,000. The extinction ratio reaches 20 dB. Source data are provided as a Source Data file
