Fig. 1 | Nature Communications

Fig. 1

From: A molecular movie of ultrafast singlet fission

Fig. 1

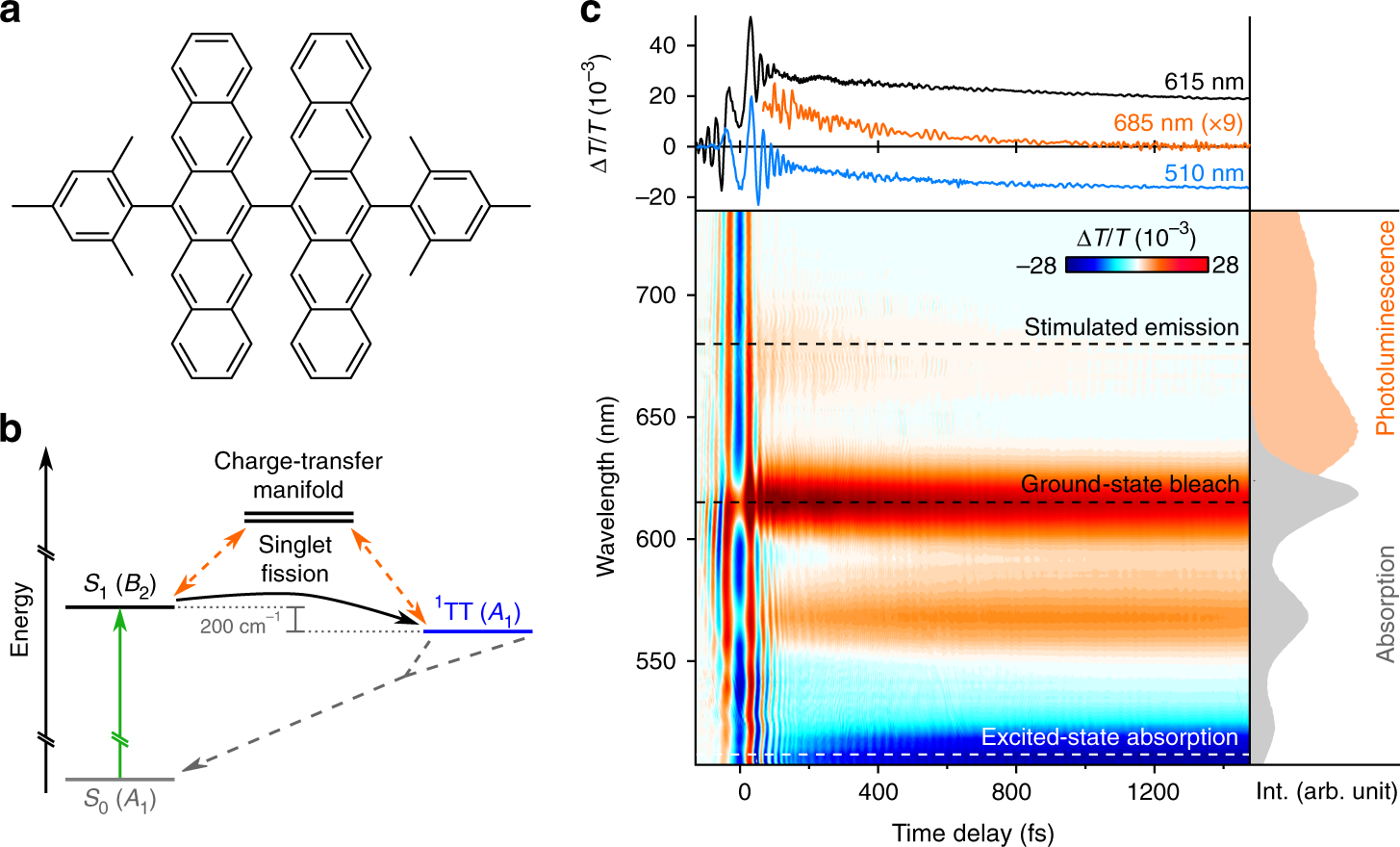

Structural and optical properties of DP-Mes. a Chemical structure of DP-Mes. Orthogonal ground-state geometry shown in Supplementary Fig. 1. b DP-Mes electronic states and photophysics. Singlet fission from S1 to 1TT is mediated by coupling (orange arrows) to a manifold of charge-transfer states which are not directly populated, facilitating the overall marginally exothermic (~200 cm−1) process46, 47. Symmetries of the relevant excited electronic states are indicated in parentheses48. c Differential transmission map of a DP-Mes thin film following excitation with a 13 fs pulse centred at 550 nm, at room temperature. The absorption (grey) and photoluminescence (orange) spectra are shown to guide spectral assignment. The primary spectral features of S1 (stimulated emission), 1TT (excited-state absorption) and total excited-state population (ground-state bleach) are indicated by dashed lines. The associated transient kinetics are shown above, with the weak stimulated emission trace scaled by a factor of 9 for clarity. The superimposed oscillatory modulations correspond to vibrationally coherent wavepackets formed by impulsive excitation. The transient absorption spectrum over an extended probe wavelength range is presented in Supplementary Fig. 9
