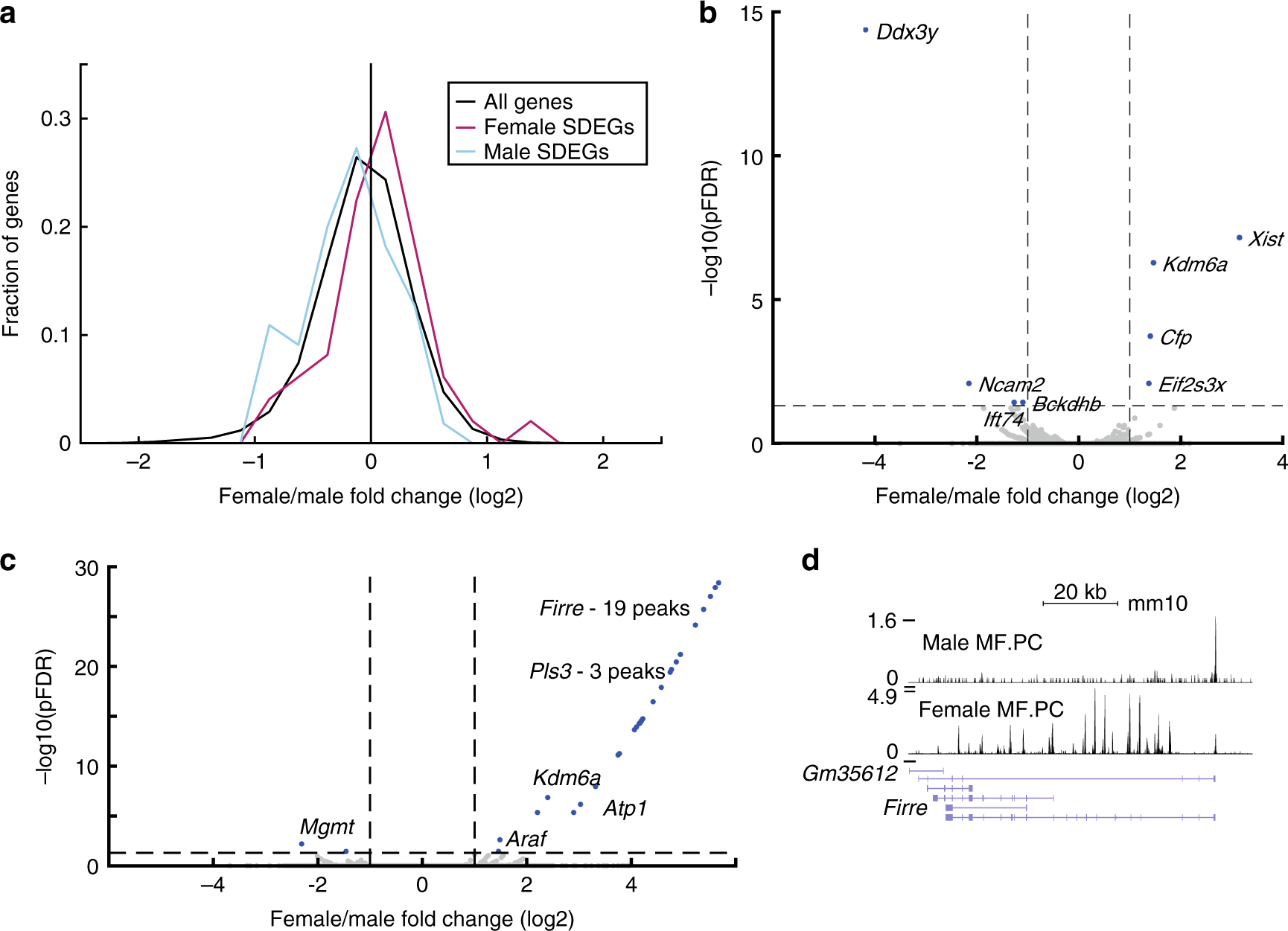

Fig. 5
From: ImmGen report: sexual dimorphism in the immune system transcriptome
ATAC-seq data of MFs display sexual dimorphism in chromatin accessibility. a Female–male fold change (log2 gene body OCR value) distribution of MF-specific female (pink) and male (blue) SDEGs and all other genes (termed all genes, excluding SDEGs, black). b Sexual differential accessibility in macrophage TSS OCRs (adjusted two-sided t test pFDR < 0.05 and female–male fold change >2, shown in blue). c Sexual differential accessibility in macrophage distal enhancer OCRs (adjusted two-sided t test pFDR < 0.05 and female–male fold change >2, shown in blue). d The Firre locus chromatin accessibility data on the UCSC data browser (http://rstats.immgen.org/Chromatin/chromatin.html) in MF male (top) and female (bottom). Source data for a–c are provided as a Source Data file
