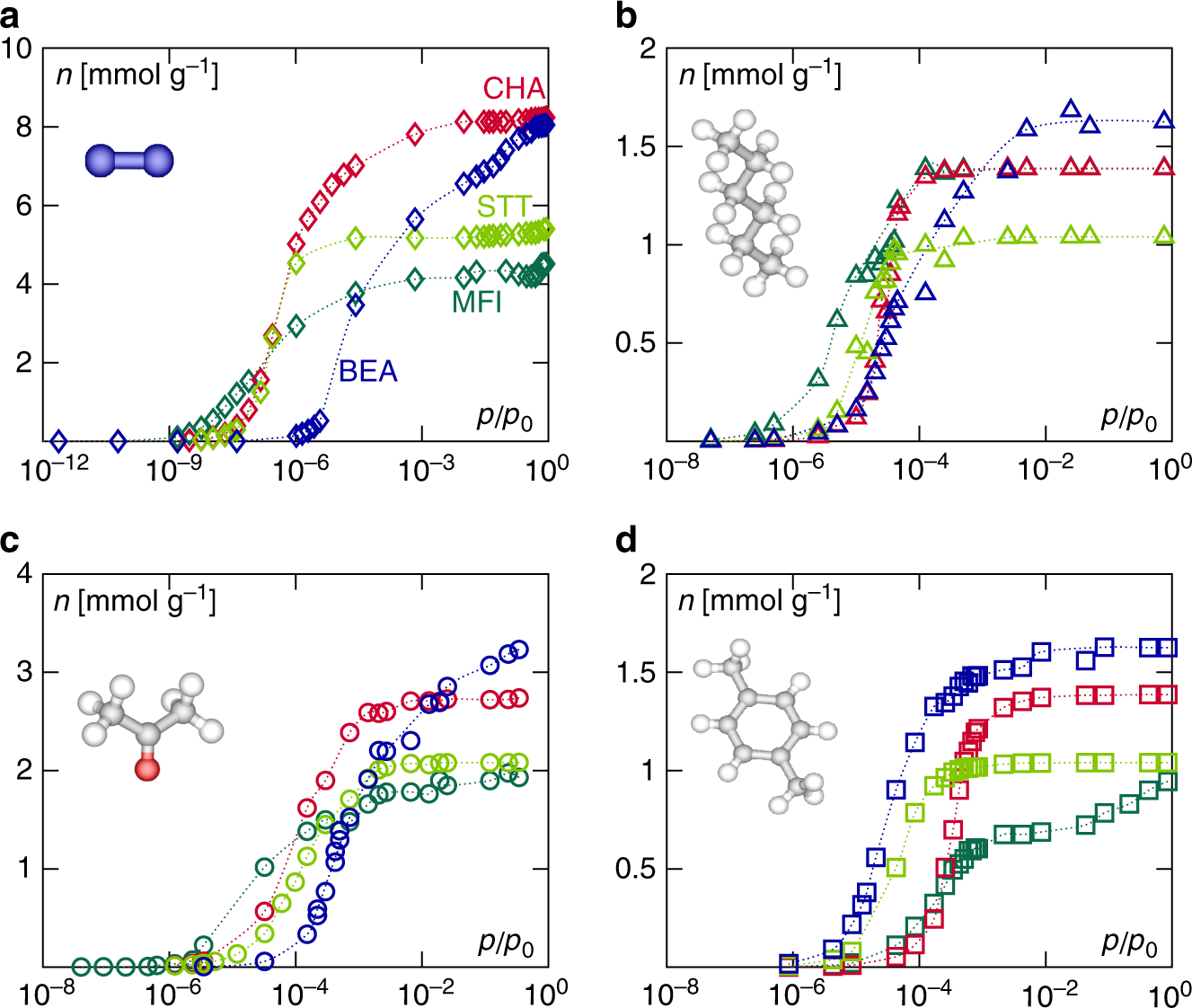

Fig. 3
Fluid adsorption in siliceous zeolites. Simulated adsorption isotherms for nitrogen at 77 K (a), n-hexane at 298 K (b), acetone at 298 K (c), and p-xylene at 298 K (d) in different siliceous zeolites: silicalite-1 (MFI, ortho, dark green data), chabazite (CHA, red data), STT (light green data), and beta (*BEA, blue data). Note the use of a log scale for the abscissas which correspond to the gas pressure axis. The bulk saturating vapor pressure p0 for each gas at the corresponding temperature is given in Supplementary Table 1
