Fig. 4 | Nature Communications

Fig. 4

From: Disruptive mutations in TANC2 define a neurodevelopmental syndrome associated with psychiatric disorders

Fig. 4

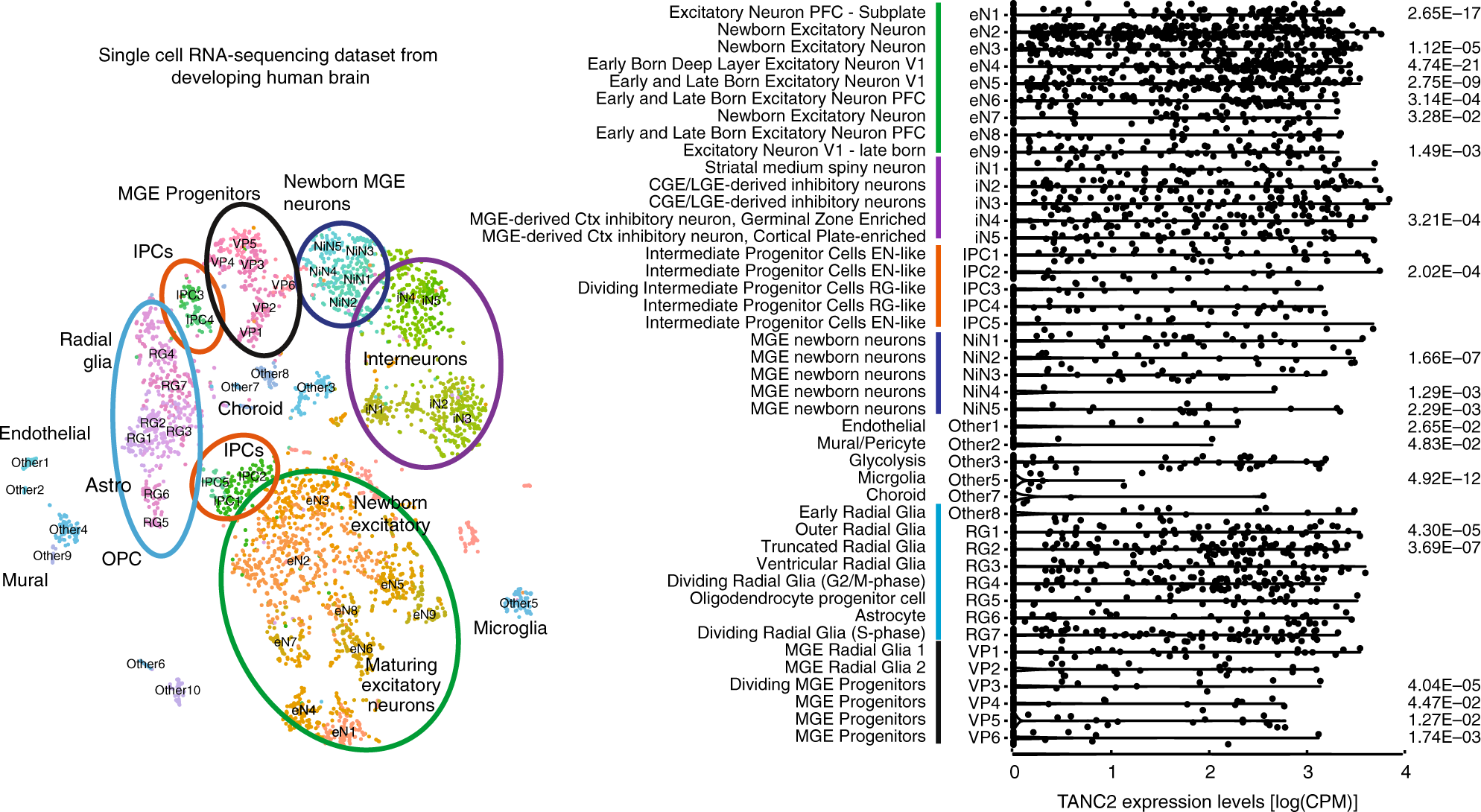

TANC2 expression in human developing brain. a T-stochastic neighbor embedding of 4621 single-cell RNA sequencing (scRNA-seq) profiles from developing human brain samples identifies the major cell types in the developing brain. Cluster numbers are drawn directly from the source study, and biological interpretations can be found in Supplementary Table 3. b Violin plot showing TANC2 expression across the major cell types identified in the scRNA-seq (a). Samples are ordered according to the average expression level across single cells of each type, and p value represents Bonferroni-corrected p value quantified using Wilcoxon rank sum test. n.s.—p > 0.05. Underlying data are provided as a Source Data file
