Fig. 5
From: Interleukin 22 disrupts pancreatic function in newborn mice expressing IL-23

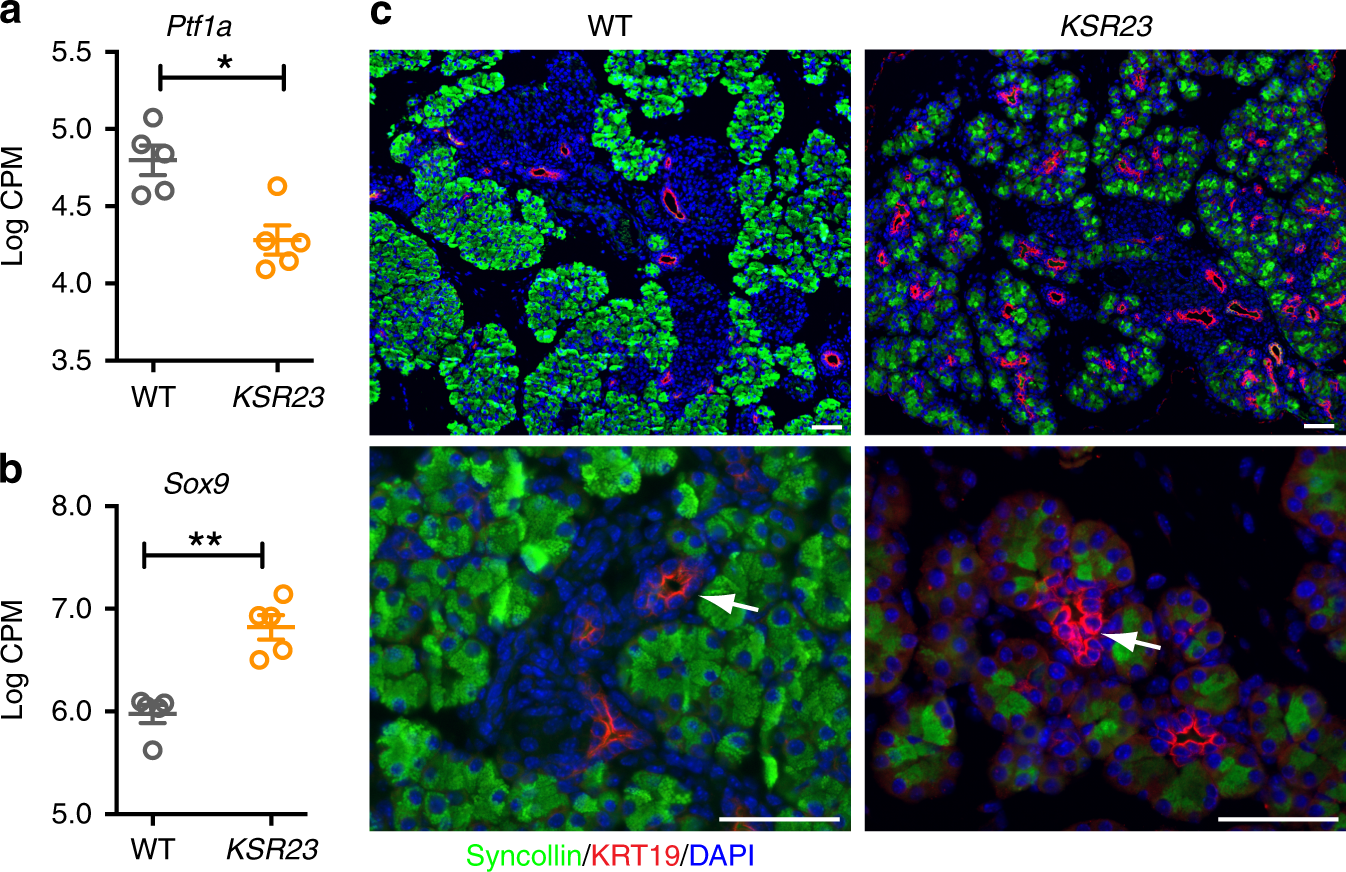

Increased number of ductal cells in the pancreas of KSR23 mice. a, b RNASeq analysis of the expression of Ptf1a (a) and Sox9 (b) in the pancreas of WT and KSR23 mice at P5 (n = 5 mice/group). Data are shown as mean ± SEM, and statistical analysis by nonparametric Mann–Whitney test. *p < 0.05 and **p < 0.01. c Immunostaining of pancreas of WT and KSR23 mice with antibodies against syncollin and KRT19. Arrows show localization of KRT19-positive cells in the pancreas of WT and KSR23 mice. Scale bars = 50 μm. Source data are provided as a Source Data file
