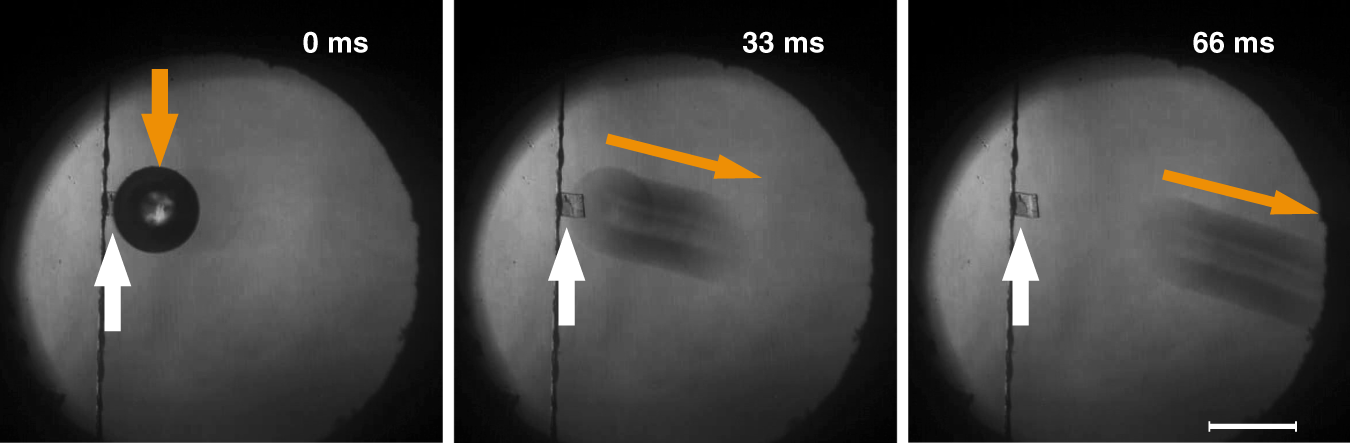

Fig. 5
From: Robust thermoelastic microactuator based on an organic molecular crystal
Glass bead displacement by crystal deformation. The force generated by the shape deformation was evaluated by the displacement of a 0.15 mg glass bead. White arrows highlight the position of the organic crystal, while orange ones mark the position of the bead at 0 ms and the direction of the bead movement at 33 and 66 ms, respectively. These pictures were extracted from the Supplementary Video 3. Scale bar is 0.5 mm
