Fig. 2

From: NEXAFS imaging to characterize the physio-chemical composition of cuticle from African Flower Scarab Eudicella gralli

Fig. 2The alternative text for this image may have been generated using AI.

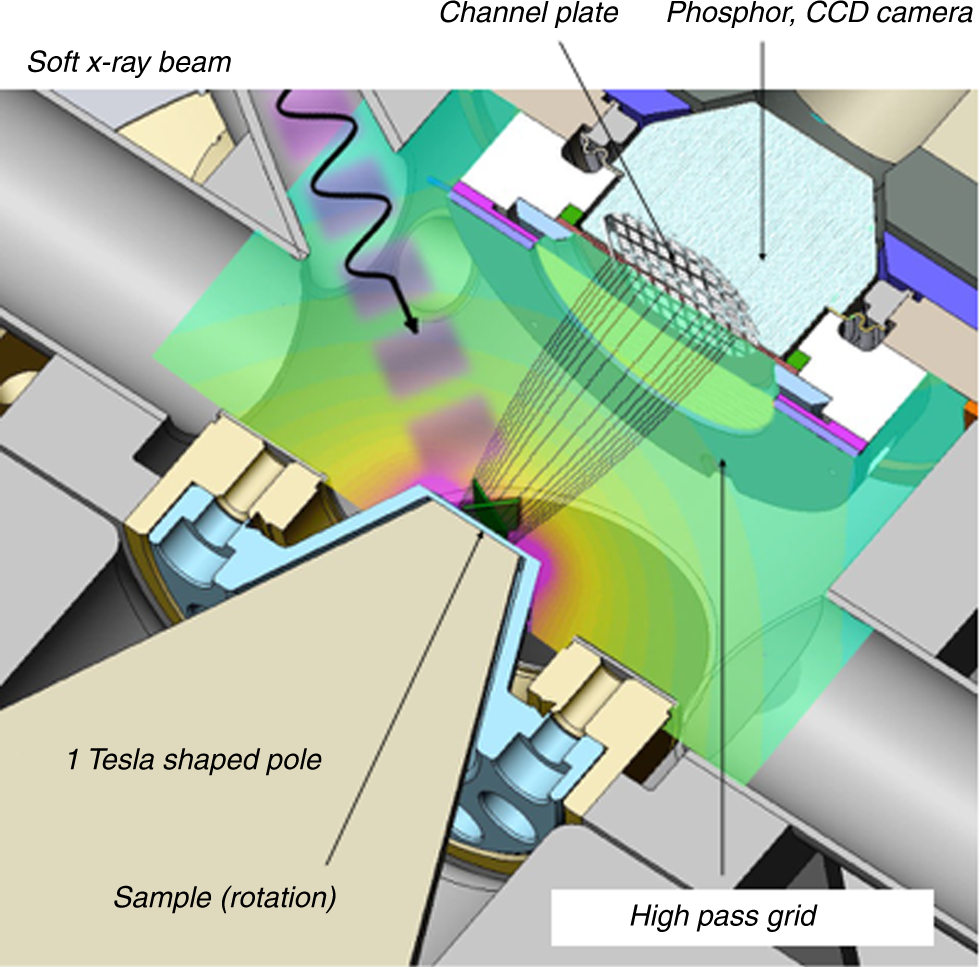

Schematic of the NEXAFS microscope. The system uses magnetic projection electron imaging with a nearly 100% collection efficiency and a large depth of field, which allows the analysis of corrugated samples and sample rotation. Auger electrons are forced to follow the magnetic field lines on helical orbits and analyzed by a grid energy analyzer and detected by phosphor screen and a CCD camera
