Fig. 2
From: Complementary hybrid electrodes for high contrast electrochromic devices with fast response

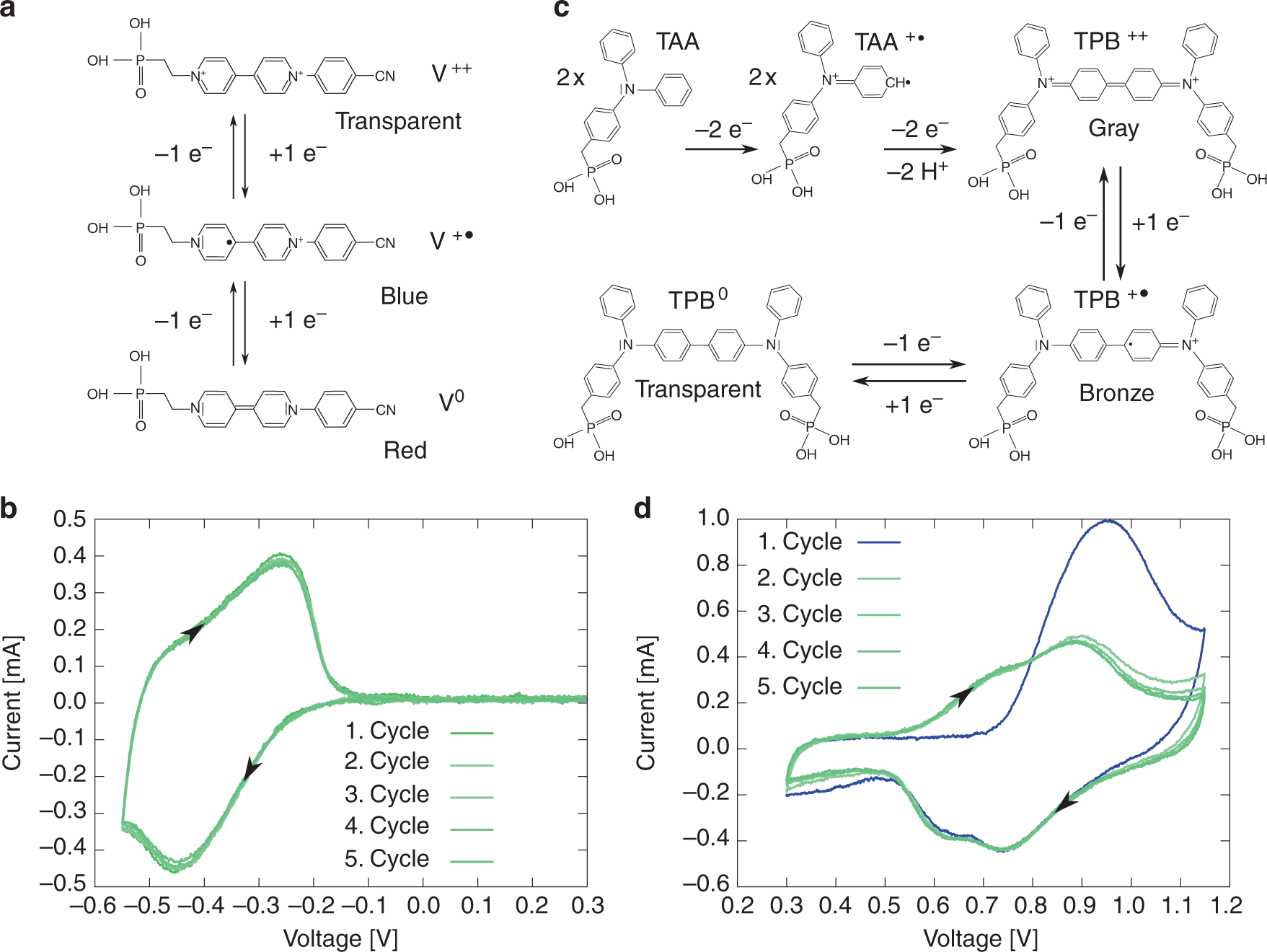

Structural formula of the electrochromic molecules and the corresponding CV measurements. a Structural formula of the viologen derivative in the different redox states and b the CV measurement in the three-electrode set-up by using an Ag/AgCl reference electrode and Pt counter electrode. c Structural formula of the phosphonated TAA and the reaction cascade for TPB formation and d CV measurements showing the dimer formation from TAA to TPB also in the above-described three- electrode set-up. Source data are provided as a Source Data file
